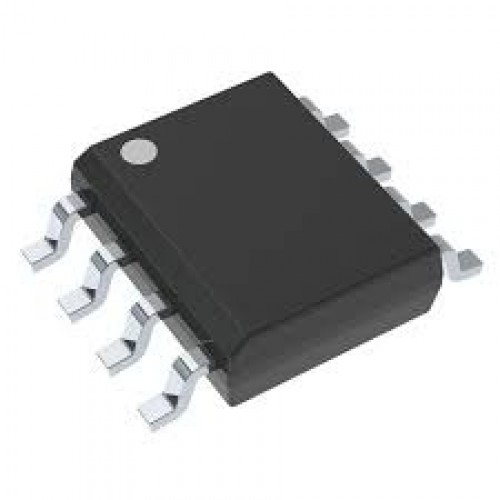

SN65HVD230DR CAN Transceiver IC

SN65HVD230DR 3.3V CAN Bus Transceiver IC

The SN65HVD230DR  controller area network (CAN) transceiver IC is compatible to the specifications of the ISO 11898-2 High Speed CAN Physical Layer standard (transceiver). These devices are designed for data rates up to 1 megabit per second (Mbps), and include many protection features providing device and CAN network robustness. The SN65HVD23x transceivers are designed for use with the Texas Instruments 3.3V µPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. SN65HVD230DR IC is intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.

Designed for operation in especially harsh environments, these devices feature cross wire protection, loss of ground and overvoltage protection, overtemperature protection, as well as wide common mode range of operation.

The CAN transceiver is the CAN physical layer and interfaces the single ended host CAN protocol controller with the differential CAN bus found in industrial, building automation, and automotive applications. These devices operate over a -2 V to 7 V common mode range on the bus, and can withstand common mode transients of ±25V.

DNA solutions, Nashik has various types of Communication IC's. Check out our complete collection of  Communication IC's.

• Operates with a single 3.3 V Supply
• Compatible With ISO 11898-2 Standard
• Bus Pin ESD Protection Exceeds ±16 kV HBM
• High Input Impedance Allows for Up to 120 Nodes on a Bus
• Adjustable Driver Transition Times for Improved Emissions Performance
• SN65HVD230: Low Current Standby Mode: 370 μA Typical
• SN65HVD231: Ultra Low Current Sleep Mode: 40 nA Typical
• Designed for Data Rates(1) up to 1 Mbps
• Thermal Shutdown Protection
• Open Circuit Fail-Safe Design
• Glitch Free Power Up and Power

Applications

• Industrial Automation, Control, Sensors and Drive Systems


• Motor and Robotic Control


• Building and Climate Control (HVAC)


• Industrial Automation, Control, Sensors and Drive Systems


• CAN Bus Standards Such as CAN open, Device Net, and CAN Kingdom


Package Includes

1 x SN65HVD230DR CAN Transceiver IC
