Product Images are shown for illustrative purposes only and may differ from actual product.

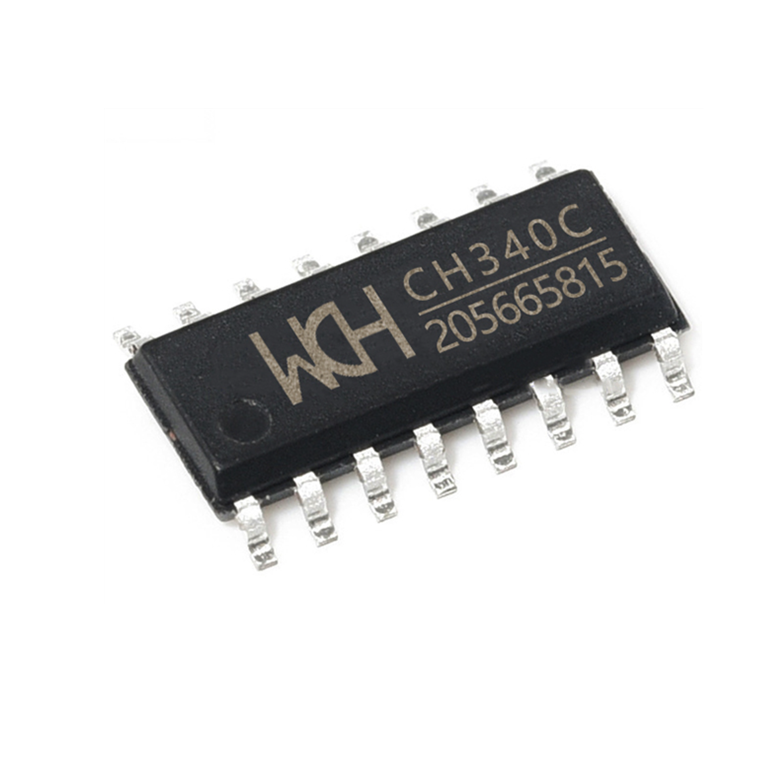

CH340C USB to TTL IC

Write a review | 0 reviews

Stock: 8

Brand: WCH

SKU: 3664 | DAE855

Rs. 117.06 (inc GST)
Rs.99.20 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

CH340C USB to TTL Serial Converter IC

CH340C USB to Serial TTL converter IC

CH340C USB to Serial Converter IC is a USB bus conversion chip, it can realize USB to UART interface or USB to printer interface. In serial UART mode, CH340 provides common MODEM liaison signal, used to expand UART interface of computer or upgrade the common serial device to USB bus directly.

CH340C IC has internal clock and does not require external crystal oscillator. You can use this IC as a replacement for CH340G.

DNA solutions, Nashik has various types of Communication IC's. Check out our complete collection of Communication IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CH340C SMD IC

SOP-16 is RoHS compliant package.
Full speed USB device interface, compatible with USB V2.0.
Supports common MODEM liaison signal RTS, DTR, DCD, RI, DSR and CTS.
Through external level conversion chip provide further RS232, RS485, RS422 interface, etc.
Software compatible with CH341, use driver of CH341 directly.
Support 5V and 3.3V power supply even 3V.
Emulate standard UART interface, used to upgrade the serial peripherals, or expand UART interface via USB bus.
Original serial applications are totally compatible, without any modification in Windows operation system.
CH340C USB to Serial Converter have built-in crystal, no external crystal.
Hardware full duplex serial UART interface, built-in transmit-receive buffer, supports communication baud rate varies from 50bps to 2Mbps.

Package Includes

1 x CH340C USB to TTL IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
