Product Images are shown for illustrative purposes only and may differ from actual product.

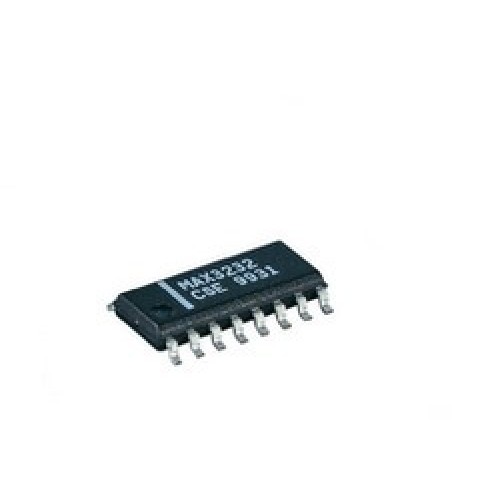

MAX3232-SMD RS-232 Line Driver


Write a review | 2 reviews

  • Stock: 4

    Availability: InStock priceValidUntil: 2026-10-14

  • SKU: 863 | DAB644

Availability: InStock priceValidUntil: 2026-10-14

  • Rs. 74.34 (inc GST)
    Rs.63.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MAX3232-SMD RS-232 Line Driver

MAX3232 is a TTL to RS232 converter and is used in place of MAX232 in circuits which work on 3.3 volts.

MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signalling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

Features of MAX3232 RS232 To TTL Converter

  • RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)

  • Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

  • Operates With 3-V to 5.5-V VCC Supply

  • Operates Up To 250 kbit/s

  • Two Drivers and Two Receivers

  • Low Supply Current . . . 300 µA Typical

  • External Capacitors . . . 4 × 0.1 µF

  • Accepts 5-V Logic Input With 3.3-V Supply

  • Alternative High-Speed Pin-Compatible

  • Device (1 Mbit/s) − SNx5C3232

Applications of MAX3232-SMD

  • Battery-Powered Systems

  • PDAs

  • Notebooks

  • Laptops

  • Palmtop PCs

  • Hand-Held Equipment

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
