  • RHRG75120 Hyperfast Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

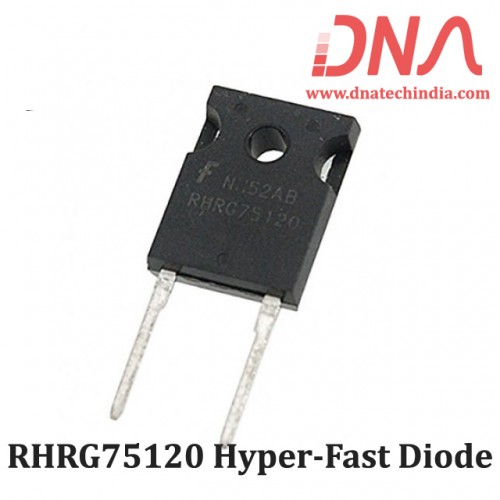

RHRG75120 Hyperfast Diode

  • Stock: 1
  • SKU: 1582 | DAA349
  • Rs. 271.40 (inc GST)
    Rs.230.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

RHRG75120 Hyperfast Diode

The RHRG75120 is a hyperfast diode with soft recovery characteristics (trr < 85ns).

It has half the recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of high frequency switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery characteristic minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.

RHRG75120 IC Specifications

  • Manufacturer : ON Semiconductor
  • Product Category : Diodes - General Purpose, Power, Switching
  • Mounting Style : Through Hole
  • Package/Case : TO-247
  • Peak Reverse Voltage : 1200 V
  • Max Surge Current : 500 A
  • If - Forward Current : 75 A
  • Configuration : Single
  • Recovery Time : 100 ns
  • Vf - Forward Voltage : 3.2 V
  • Ir - Reverse Current : 250 uA
  • Minimum Operating Temperature : - 65 C
  • Maximum Operating Temperature : + 175 C
  • Series : RHRG75120
