  • TIP32 PNP Power Transiator

Product Images are shown for illustrative purposes only and may differ from actual product.

TIP32 PNP Power Transiator


Write a review | 0 reviews

  • Stock: 34
  • SKU: 0556 | DAA204

Availability: InStock priceValidUntil: 2025-09-23

  • Rs. 16.52 (inc GST)
    Rs.14.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

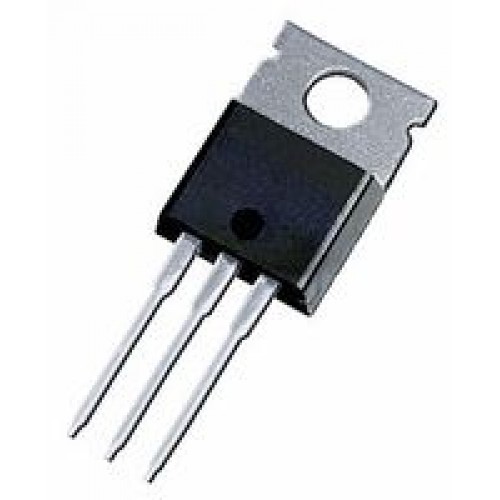

TIP32C PNP Power Transistor

The TIP32C is a silicon Epitaxial-base PNP power transistor in Jedec TO-220 plastic package.

It is intented for use in medium power linear and switching applications. The complementary NPN type is TIP31C.

Feature of TIP32C

  • IC Collector current -3 A

  • ICM Collector peak current (tP < 5ms) -5 A

  • IB Base current -1 A

  • VCBO Collector - base voltage (IE = 0) -100 V

  • VCEO Collector - emitter voltage (IB = 0) -100 V

  • VEBO Emitter - base voltage (IC = 0) -5 V

  • PTOT Total dissipation at Tcase = 25°C 40W  Tamb = 25°C 2W

  • Tstg Storage temperature -65 to 150 °C

  • TJ Max. operating junction temperature 150 °C

Application of TIP32C

  • Linear and swithing industrial equipment

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
