  • A3992 Motor Driver IC

Product Images are shown for illustrative purposes only and may differ from actual product.

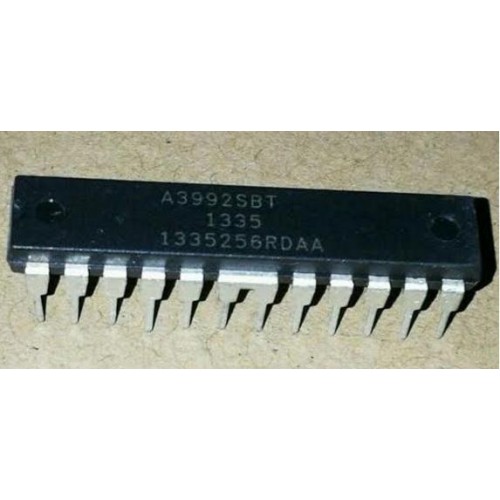

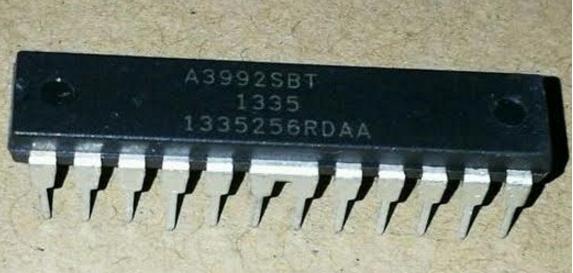

A3992 Motor Driver IC

  • Stock: Out Of Stock
  • SKU: 1792 |
  • Rs. 224.20 (inc GST)
    Rs.190.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

A3992 Full-Bridge Motor Driver

DMOS Dual Full-Bridge Microstepping PWM Motor Driver

Designed for pulse width modulated (PWM) current control of bipolar microstepped stepper motors, the Allegros A3992 is -capable of continuous output currents to ±1.5 A and operating voltages to 50 V. Internal fixed off-time PWM current control timing circuitry can be programmed via the serial interface to operate in slow, fast, or mixed decay modes.The desired load current level is set via the serial port with two six bit linear DACs in conjunction with a reference voltage. The six bits of control allow maximum flexibility in torque control for a variety of step methods, from microstepping to full step drive. Load current is set in 1.56% increments of the maximum value. Synchronous rectification circuitry allows the load current to flow through the low RDS(on)of the DMOS output driver during current decay.

This feature eliminates the need for external clamp diodes in most applications, saving cost and external component count, while minimizing power dissipation. Internal circuit protection includes short-to-ground, shorted load, thermal shutdown with hysteresis, and crossover current protection.  Special power up sequencing is not required.The A3992 is supplied in a thin profile (1.2 mm maximum height) 24 pin TSSOP (suffix LP) with exposed thermal pad and a 24 pin plastic DIP with dual copper batwing tabs (suffix B). The exposed thermal pad on the LP is at ground potential and needs no electrical isolation. Both packages are lead (Pb) free with 100% matte tin leadframe plating.

Features Of A3992 DMOS Dual Full-Bridge Microstepping PWM Motor Driver IC

  • ±1.5 A, 50 V continuous output rating
  • Low RDS(on)DMOS output drivers
  • Short-to-ground protection
  • Shorted load protection
  • Optimized microstepping via six bit linear DACs
  • Programmable mixed, fast, and slow current decay modes
  • 4 MHz internal oscillator for digital timing
  • Serial interface controls chip functions
  • Synchronous rectification for low power dissipation
  • Internal UVLO and thermal shutdown circuitry
  • Crossover-current protection
  • Inputs compatible with 5 or 3.3 V control signals
  • Sleep and Idle modes

Absolute Maximum Ratings Of A3992 IC

  • Absolute Maximum Ratings (VBB) : 50 Volts
  • Output Current (IOUT) : ±1.5 Ampere
  • Logic Supply Voltage (VDD) : 7.0 Volts
  • Logic Input Voltage Range (VIN) : –0.3 to 7 Volts
  • OUTx to SENSEx Voltage : 50 Volts
  • REF Reference Voltage (VREF) : 3 Volts
  • SENSE Voltage (DC) (VSENSE) : 500 mV
  • Operating Ambient Temperature (TA) : –20 to 85 ºC
  • Maximum Junction Temperature (TJ(max)) : 150 ºC
  • Storage Temperature (Tstg) : –55 to 150 ºC
