  • MCP602 Dual Op-Amp

Product Images are shown for illustrative purposes only and may differ from actual product.

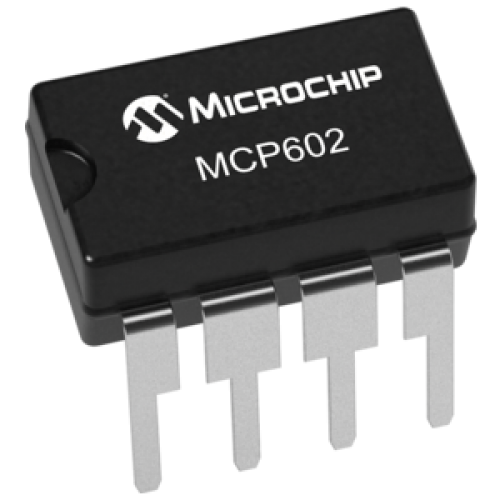

MCP602 Dual Op-Amp

  • Stock: 8
  • SKU: 0815 | DAA052
  • Rs. 53.10 (inc GST)
    Rs.45.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MCP602 Dual Op-Amp

The MCP602 dual operational amplifier op-amp has a gain bandwidth product of 2.8 MHz with low typical operating current of 230 uA and an offset voltage that is less than 2 mV.

The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current per amplifier. The MCP602 op-amp is available in standard 8-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

Features of MCP602

  • Low Input Bias Current :1 pA (typ.)

  • Gain-Bandwidth Product : 2.8 MHz

  • Low Quiescent Current : 230 µA/amplifier (typical)

  • Low Input Offset Voltage : 2 mV (max.)

  • Unity Gain Stable

  • Rail to Rail Output

  • Extended Temperature Range

  • Temp. Range (°C) : -40°C to +125°C

  • Vos Max (µV) : 2000

  • # per Package : 2

  • Iq Typical (µA) : 230

  • Iq Max (µA) : 325

  • GBWP (kHz) : 2800

  • Operating Voltage Range (V) : 2.7 to 6.0

  • Device Description : Linear Op Amps

  • Input Voltage Noise Density (nV/rt(Hz)) : 29

  • PSRR Min (dB) : 80

  • CMRR Min (dB) : 75

  • Vos/Ta (uV/°C) : 2.5
