  • OP07 Precision SMD OPAMP

Product Images are shown for illustrative purposes only and may differ from actual product.

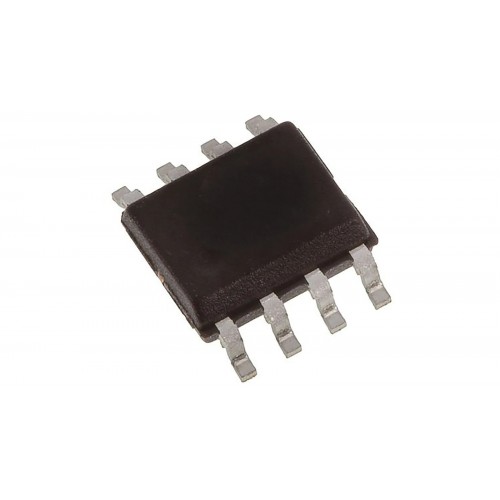

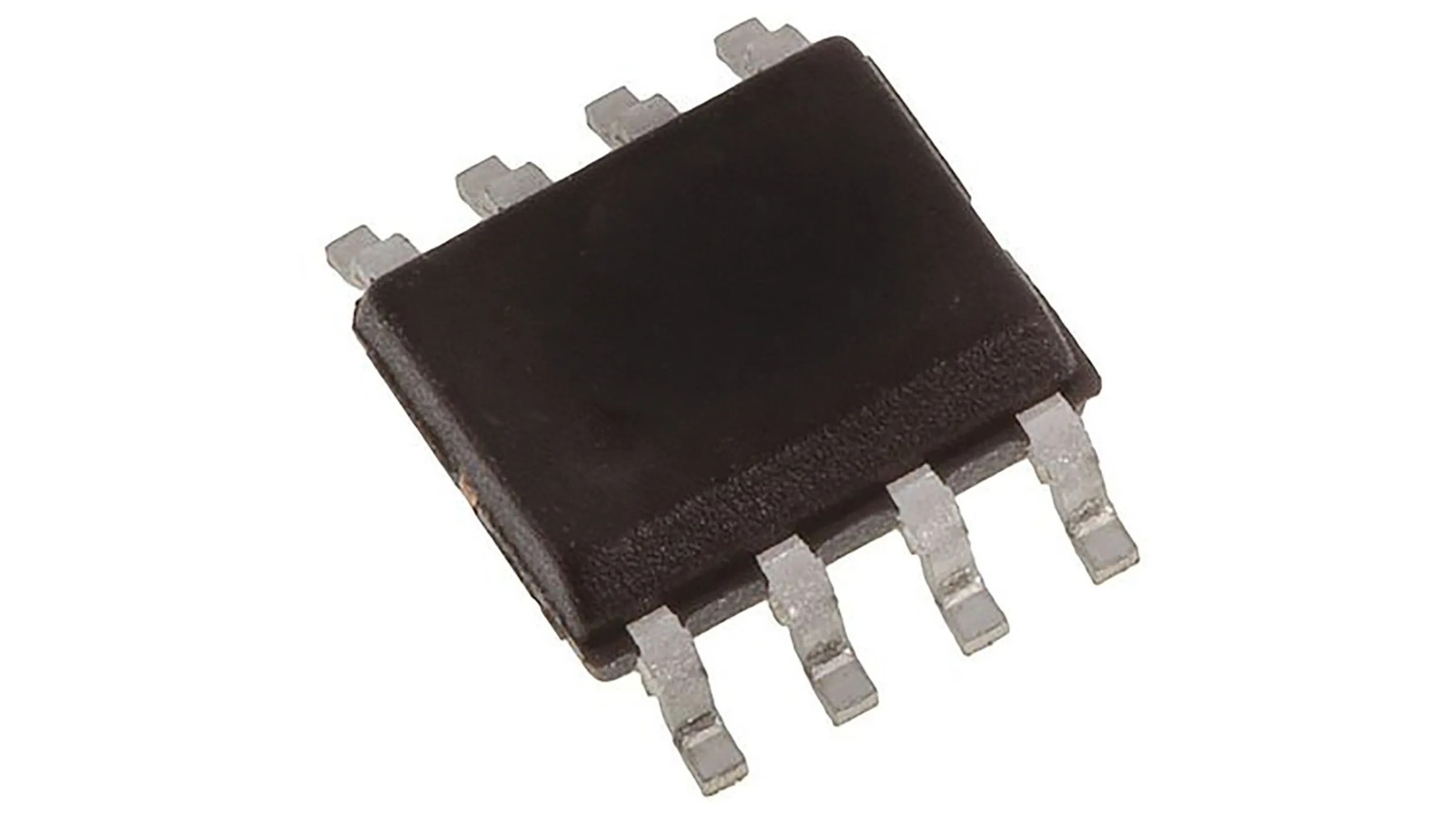

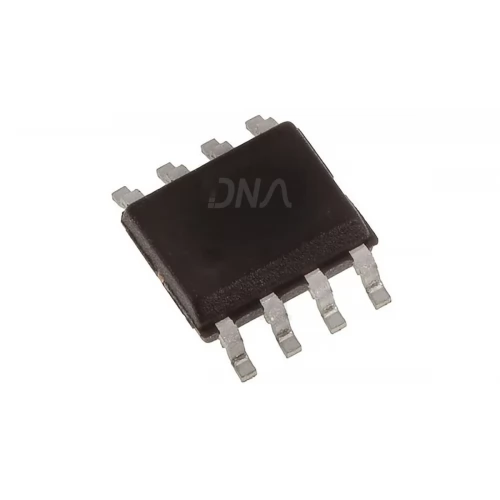

OP07 Precision SMD OPAMP


Write a review | 0 reviews

  • Stock: 1000

    Availability: InStock priceValidUntil: 2025-12-06

  • SKU: 7234 | DAD542

Availability: InStock priceValidUntil: 2025-12-06

  • Rs. 16.52 (inc GST)
    Rs.14.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

OP07 Precision OPAMP

OP07 Precision OPAMP SMD IC

The OP07 (Operational Amplifier) has very low input offset voltage (75 μV maximum for OP07E) that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling. The OP07 also features low input bias current (±4 nA for the OP07E) and high open-loop gain (200 V/mV for the OP07E).The low offset and high open-loop gain make the OP07 particularly useful for high gain instrumentation applications.

DNA solutions, Nashik has various types of OPAMP's. Check out our complete collection of  OPAMP's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of OP07 Precision OPAMP

  • Low VOS: 75 μV maximum
  • Low VOS drift: 1.3 μV/°C maximum
  • Ultra stable vs. time: 1.5 μV per month maximum
  • Low noise: 0.6 μV p-p maximum
  • Wide input voltage range: ±14 V typical
  • Wide supply voltage range: ±3 V to ±18 V
  • 125°C temperature-tested dice

Specifications of OP07 Precision OPAMP

  • Offset Voltage (Vos):
          Typical: 75 µV
          Maximum: 150 µV
  • Input Bias Current (Ib):
          Typical: 1.8 nA
           Maximum: 10 nA
  • Input Offset Current (Iio):
           Typical: 0.1 nA
           Maximum: 2 nA
  • Input Voltage Range:±13V for a ±15V power supply

    Package Includes

    • 1 x OP07 Precision OPAMP

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
