• D15XB60 Bridge Rectifier

Product Images are shown for illustrative purposes only and may differ from actual product.

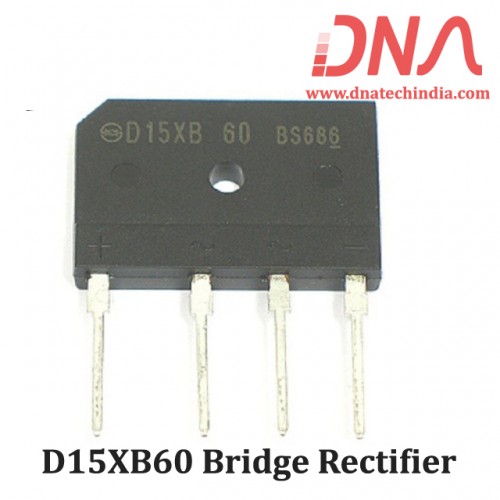

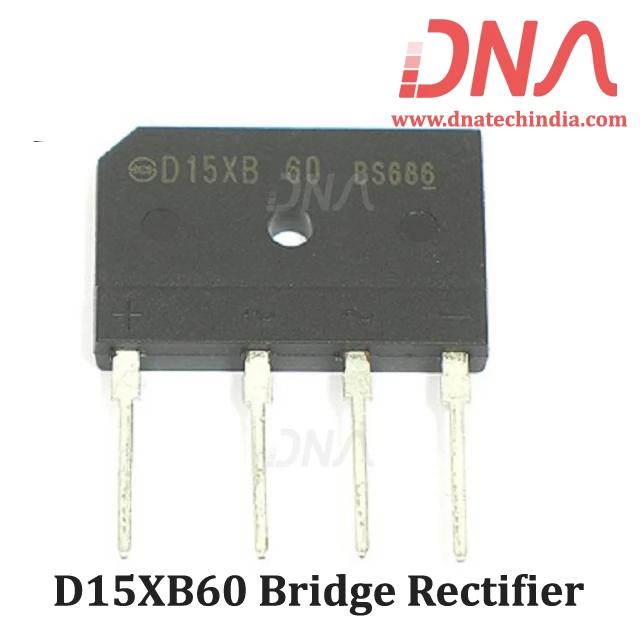

D15XB60 Bridge Rectifier

  • Stock: 7
  • SKU: 2488 | DAC578
  • Rs. 49.56 (inc GST)
    Rs.42.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

D15XB60 Bridge Rectifier

High reliability in-line bridge rectifier.

DB15XB60 is a high current single phase bridge Rectifier with small package. DB15XB60 has high IFSM and provides superior thermal conductivity.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of D15XB60 Bridge Rectifier

  • High surge current
  • Slimline package.
  • Glass Passivated junction.

  • Polarity identifications.
  • Molded Plastic Case
  • Ideal for printed circuit board
  • Thin Single In-Line Package
  • High current capacity with Small Package
  • High IFSM
  • Superior Thermal Conductivity

Specification of D15XB60 Bridge Rectifier

  • Supply Voltage (maximum) : 600 Volts
  • Current : 15 Ampere
  • Surge Forward Current : 200 Ampere
  • Forward Voltage Drop : 0.92 Voys
  • Reverse Leakage Current : 5μA

Application of D15XB60 Bridge Rectifier

  • Switching Power Supply
  • Home Appliance, Office Equipment
  • Factory Automation, Inverter

Related Links

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
