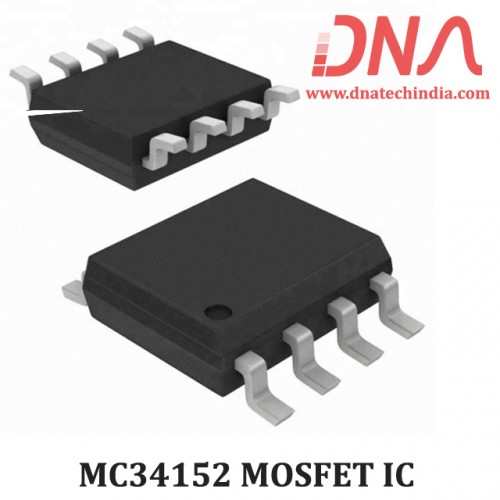

MC34152 High Speed Dual MOSFET IC

MC34152 High Speed Dual MOSFET IC

MC34152 Dual MOSFET Driver with 1.5A outputs, low standby current, and fast switching times.

The MC34152 High Speed Dual MOSFET IC is designed for efficient driving of large capacitive loads. It features two independent channels with 1.5 A totem pole outputs, ensuring quick response times for your applications. This driver operates with CMOS and LSTTL logic levels, making it versatile for various digital needs. The inclusion of undervoltage lockout enhances reliability by preventing erratic behavior at low voltages.

Ideal for switching power supplies, dc-to-dc converters, and motor controllers, the MC34152 High Speed Dual MOSFET IC offers output rise and fall times of just 15 ns with a 1000 pF load. Its design ensures low input current and compatibility with high-frequency operations, making it suitable for modern electronic systems. This product is available in both dual-in-line and surface mount packages.

With features like input hysteresis and low standby current, the MC34152 High Speed Dual MOSFET IC enhances system performance for automotive and other applications. Explore our selection of MOSFET drivers to find the perfect fit for your project and experience dependable operation in demanding environments.

Explore the reliability of the MC34152 High Speed Dual MOSFET IC at DNA. This product falls under the MOSFET & IGBT category, perfect for your electronic needs. Check other MOSFET & IGBT that we have in stock.

At DNA, we cater to all your electronic component needs. If you can’t find specific parts, let us know. We can import items and support both retail and bulk orders. Check out related components like Transistors, Super Capacitors, and Sensors. Contact Us.

Features of MC34152 High Speed Dual MOSFET IC

• Two Independent Channels with 1.5 A Totem Pole Outputs
• Output Rise and Fall Times of 15 ns with 1000 pF Load
• CMOS/LSTTL Compatible Inputs with Hysteresis
• Under voltage Lockout with Hysteresis
• Low Standby Current
• Efficient High Frequency Operation
• Pb-Free and Halide−Free Devices

Specification of MC34152 High Speed Dual MOSFET IC

• Output Current: 1.5 A
• Input Compatibility: CMOS/LSTTL
• Output Rise Time: 15 ns
• Output Fall Time: 15 ns
• Package Type: SOIC

Applications of MC34152 High Speed Dual MOSFET IC

• Switching Power Supplies
• DC-DC Converters
• Capacitor Charge Pumps
• Motor Controllers

Related Links for MC34152 High Speed Dual MOSFET IC

MC34152 Datasheet:

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X MC34152 High Speed Dual MOSFET IC
