• XL4016 8A DC to DC converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

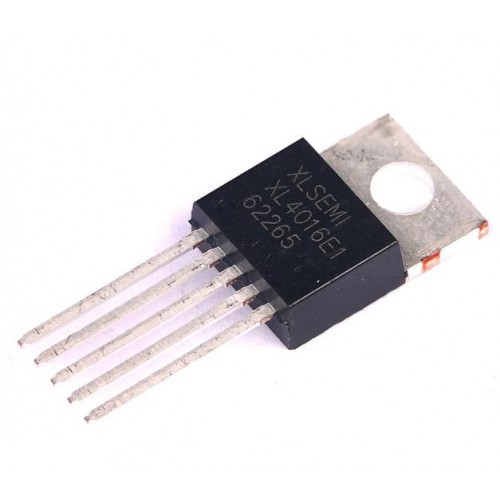

XL4016 8A DC to DC converter IC

  • Stock: 10
  • Brand: XL Semi
  • SKU: 1669 | DAA674

Availability: InStock priceValidUntil: 2025-09-28

  • Rs. 81.42 (inc GST)
    Rs.69.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL4016 DC to DC Converter IC

XL4016 8 Ampere DC to DC Converter IC; Adjustable Output

The XL4016 DC to DC Converter from XL Semiconductor is a 180 KHz fixed frequency PWM buck (step-down) DC to DC converter which is  capable of driving a 8 Ampere load with high efficiency, low ripple and excellent line and load regulation. XL4016 IC requires  minimum number of external components and comes in TO220-5L package. XL4016 DC to DC Converter IC is simple to use and includes internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit in XL4016 IC is able to adjust the duty ratio linearly from 0 to 100%. An over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.

Features of XL4016 XL4016 DC to DC converter IC

  • Wide 8 Volt to 40 Volt Input Voltage Range
  • Output Adjustable from 1.25 Volts to 36 Volts
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 0.3 Volts
  • Fixed 180KHz Switching Frequency
  • 8 Ampere Constant Output Current Capability
  • Internal Optimize Power MOSFET
  • High efficiency up to 96%
  • Excellent line and load regulation
  • Built in thermal shutdown function
  • Built in current limit function
  • Built in output short protection function
  • Built in input over voltage protection
  • Available in TO220-5L package

Applications of XL4016 DC to DC converter IC

  • LCD Monitor and LCD TV
  • Portable instrument power supply
  • Telecom / Networking Equipment

Related LINKS

Package Includes

  • 1 x XL4016 8A DC to DC converter IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
