  • XL7015 IC

Product Images are shown for illustrative purposes only and may differ from actual product.

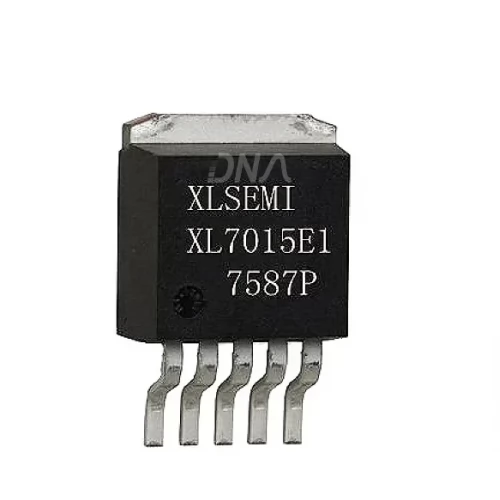

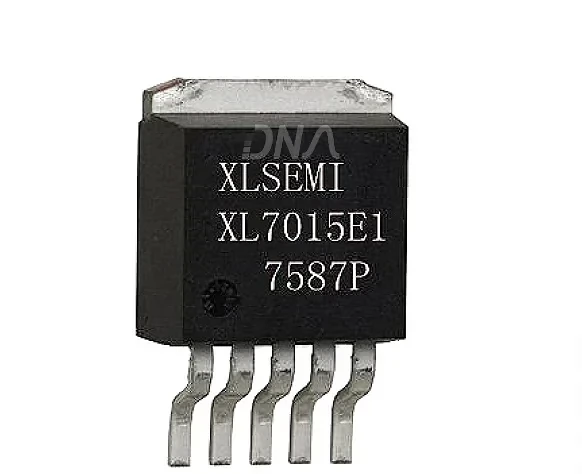

XL7015 IC

  • Stock: 810
  • Brand: XL Semi
  • SKU: 1147 | DAB613
  • Rs. 55.22 (inc GST)
    Rs.46.80 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL7015 IC

The XL7015 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.8A load with high efficiency, low ripple and excellent line and load regulation.

Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.
The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When output short protection function happens, the operation frequency will be reduced from 150KHz to 45KHz. An internal compensation block is built in to minimize external component count.

Features of XL7015

  • Wide 5V to 80V Operation Voltage
  • Output Adjustable from 1.25V to 20V
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 1V
  • Fixed 150KHz Switching Frequency
  • Maximum 0.8A Output Current
  • Recommend output power less than 7W
  • Internal Optimize HV Power Transistor
  • High efficiency up to 85%
  • Excellent line and load regulation
  • TTL shutdown capability
  • Built in thermal shutdown function
  • Built in output short Protection Function
  • Built in current limit function
  • TO252-5L package

Applications of XL7015

  • Ebike Controller Power Supply
  • Telecom / Networking Equipment
