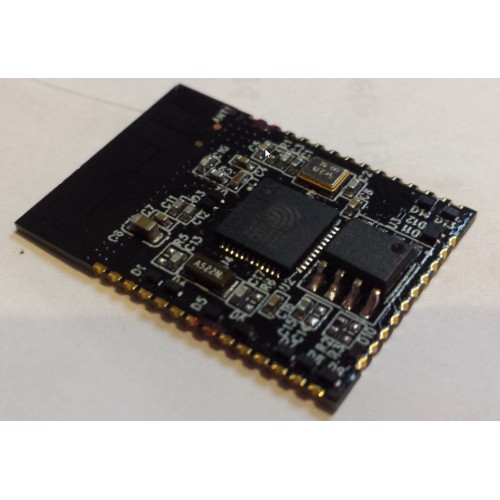

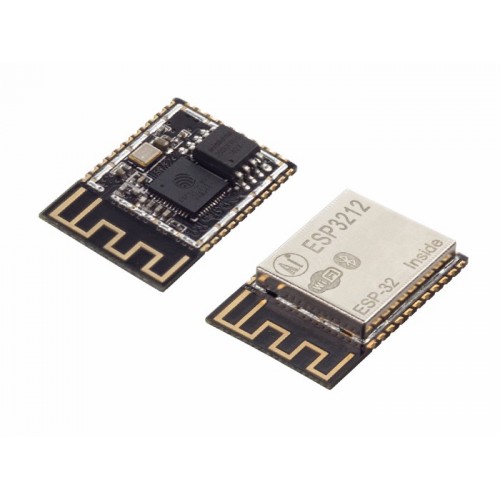

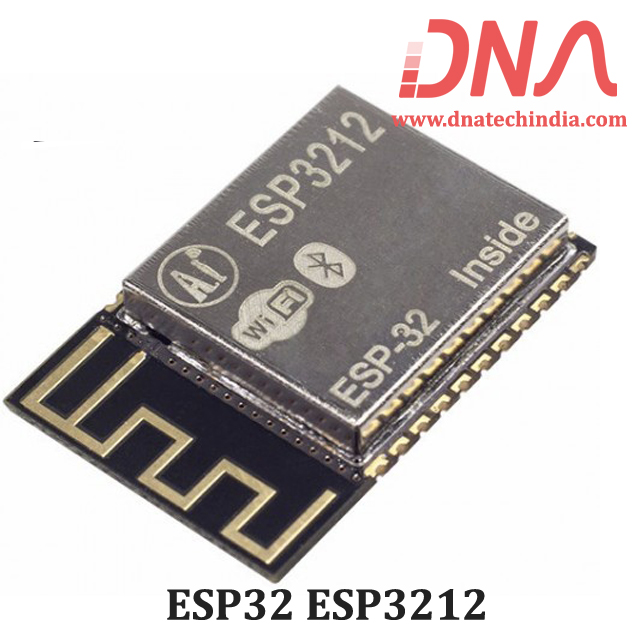

ESP32 ESP3212 WiFi-BLE Module

ESP32 WiFi-BLE Module

ESP32 is a single chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra low power 40 nm technology.

Features OF ESP32

Basic Protocols

Wi-Fi

• 802.11 b/g/n/e/i
• 802.11 n (2.4 GHz), up to 150 Mbps
• 802.11 e: QoS for wireless multimedia technology
• WMM-PS, UAPSD
• A-MPDU and A-MSDU aggregation
• Block ACK
• Fragmentation and defragmentation
• Automatic Beacon monitoring/scanning
• 802.11 i security features: pre-authentication and TSN
• Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
• Infrastructure BSS Station mode/SoftAP mode
• Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
• UMA compliant and certified
• Antenna diversity and selection

Bluetooth

• Compliant with Bluetooth v4.2 BR/EDR and BLE specification
• Class-1, class-2 and class-3 transmitter without external power amplifier
• Enhanced power control
• +10 dBm transmitting power
• NZIF receiver with -98 dBm sensitivity
• Adaptive Frequency Hopping (AFH)
• Standard HCI based on SDIO/SPI/UART
• High speed UART HCI, up to 4 Mbps
• BT 4.2 controller and host stack
• Service Discover Protocol (SDP)
• General Access Profile (GAP)
• Security Manage Protocol (SMP)
• Bluetooth Low Energy (BLE)
• ATT/GATT
• HID
• All GATT-based profile supported
• SPP-Like GATT-based profile
• BLE Beacon
• A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
• CVSD and SBC for audio codec
• Bluetooth Piconet and Scatternet

MCU and Advanced Features

CPU and Memory

• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
• 448 KByte ROM
• 520 KByte SRAM
• 16 KByte SRAM in RTC
• QSPI Flash/SRAM, up to 4 x 16 MBytes
• Power supply: 2.2 V to 3.6 V

Clocks and Timers

• Internal 8 MHz oscillator with calibration
• Internal RC oscillator with calibration
• External 2 MHz to 40 MHz crystal oscillator
• External 32 kHz crystal oscillator for RTC with calibration
• Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
• RTC timer with sub-second accuracy
• RTC watchdog

Advanced Peripheral Interfaces

• 12-bit SAR ADC up to 18 channels
• 2 × 8-bit D/A converters
• 10 × touch sensors
• Temperature sensor
• 4 × SPI
• 2 × I2S
• 2 × I2C
• 3 × UART
• 1 host (SD/eMMC/SDIO)
• 1 slave (SDIO/SPI)
• Ethernet MAC interface with dedicated DMA and IEEE 1588 support
• CAN 2.0
• IR (TX/RX)
• Motor PWM
• LED PWM up to 16 channels
• Hall sensor
• Ultra low power analog pre-amplifier

Security

• IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI
• Secure boot
• Flash encryption
• 1024-bit OTP, up to 768-bit for customers
• Cryptographic hardware acceleration:
• - AES
• – HASH (SHA-2) library
• – RSA
• – ECC
• – Random Number Generator (RNG)

Development Support

• SDK Firmware for fast on-line programming
• Open source toolchains based on GCC
