FFSD-04-D-06.00-01 Ribbon Cables/IDC Cables

FFSD-04-D-06.00-01 Ribbon Cables/IDC Cables

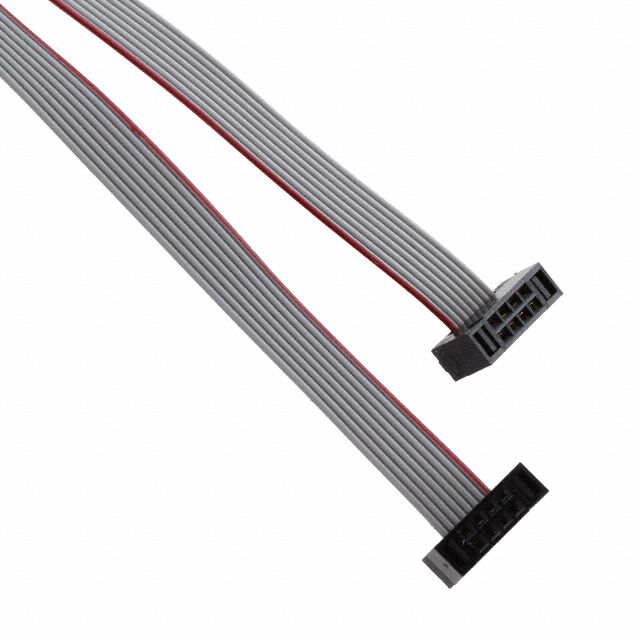

The Samtec FFSD-04-D-06.00-01 is a high-quality ribbon cable assembly from the Tiger Eye™ series, featuring an 8-position (2×4) dual-row socket-to-socket IDC connector. It has a 1.27 mm pitch, 6-inch (152.4 mm) length, and uses 30 AWG ribbon cable with a 0.64 mm pitch between wires. The connectors are plated with gold over nickel for reliable signal integrity. This cable is ideal for tight-space, high-reliability applications in industrial, medical, and test equipment. Operating temperature ranges from -55°C to +105°C. The compact profile suits high-density interconnect requirements.

DNA solutions, Nashik has various types of Cable's. Check out our complete collection of Cable's.

• Connector Type: Socket to Socket (IDC)

• Number of Positions: 8 (2 rows × 4)

• Shielding: Unshielded

• Contact Plating: Gold over Nickel

• Contact Finish Thickness: 10 µin (0.25 µm)

• Termination Method: IDC (Insulation Displacement Contact)

Specifications of FFSD-04-D-06.00-01 Ribbon Cables/IDC Cables

• Series: FFSD (Tiger Eye™ IDC Socket Cable Assemblies)

• Connector Type: IDC Socket to IDC Socket

• Positions(Contacts):8 total

• Current Rating:1 A max per contact (depending on conditions)

• Cable Type: Ribbon, 8 conductors, 30 AWG

Applications of FFSD-04-D-06.00-01 Ribbon Cables/IDC Cables

• Industrial Automation

• Telecommunications

• Medical Devices

• Consumer Electronics

Package Includes

      1 x FFSD-04-D-06.00-01 Ribbon Cables/IDC Cables
