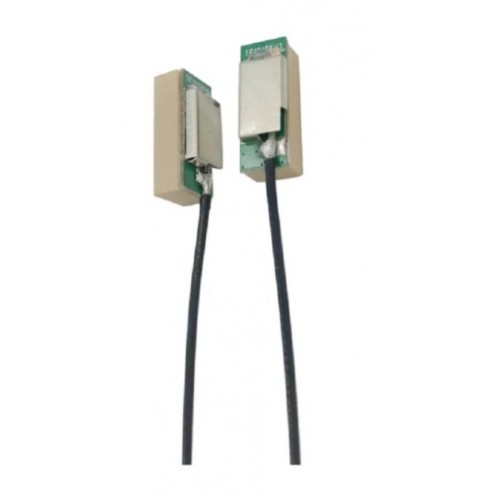

GPS Patch Antenna With UFL Connector (20mm X 6mm)
- Stock: 9
- Brand: Generic
- SKU: 3746 | DAF895
-
Rs. 262.85 (inc GST)
Rs.222.75 + GSTQty :
| Also Available: DV164122 Microchip PICkit Serial Analyzer in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
GPS Patch Antenna with UFL Connector - 20mm x 6mm
GPS Patch Antenna with UFL Connector, compact size, 50 ohm impedance, and 9.6 MHz bandwidth.
The GPS Patch Antenna with UFL Connector is designed for precise GPS applications. With dimensions of 20mm x 6mm, this compact antenna provides high stability and sensitivity. It operates at a center frequency of 1575.42 ± 2 MHz, making it ideal for various GPS-based devices. The antenna features a low VSWR of 1.5 max and an impedance of 50 ohm, ensuring optimal performance in signal reception.
This GPS Patch Antenna with UFL Connector excels with a gain of -4.7 dBic at zenith and an axial ratio of 3 dB typ. It performs well across a temperature range of -20 to 80 °C, making it suitable for diverse environmental conditions. The 9.6 MHz bandwidth ensures reliable communication in GPS applications.
Perfect for electronic projects and embedded systems, the GPS Patch Antenna with UFL Connector is a reliable choice for engineers and hobbyists alike. Explore how this antenna can enhance your GPS applications and ensure accurate tracking and navigation.
At DNA, we offer a wide range of products from top manufacturers in the Connectors and Cables category. Discover the GPS Patch Antenna with UFL Connector and explore other essential components. Check other "Connectors and Cables" that we have in stock.
If you need specific electronic components, reach out to us. At DNA, we can assist in sourcing hard-to-find parts and offer support for both retail and bulk orders. Explore related items like Connectors, HMI Displays, Microcontrollers, IGBTs, Sensors, and LCDs. Contact Us.
Features of GPS Patch Antenna with UFL Connector - 20mm x 6mm
- Compact Size
- High Quality
- Low Cost
- 4 Stage LNA
- Temperature Coefficient of Frequency: -20 ~ 80 °C
Specification of GPS Patch Antenna with UFL Connector - 20mm x 6mm
- Outline Dimensions: 20 × 6 × 4 mm
- VSWR: 1.5 Max
- Impedance: 50 ohm
- Ground Plane: 25 x 25 mm
- Center Frequency: 1575.42 ± 2 MHz
- Bandwidth: 9.6 MHz Min
- Gain at Zenith: -4.7 dBic typ
- Gain at 10° elevation: -8.9 dBic typ
- Axial Ratio: 3 dB typ
Applications of GPS Patch Antenna with UFL Connector - 20mm x 6mm
- GPS Navigation Systems
- Automotive Tracking Solutions
- Mobile Communication Devices
- IoT Applications
- Embedded System Projects
Related Links for GPS Patch Antenna with UFL Connector - 20mm x 6mm
Package Includes
- 1 X GPS Patch Antenna with UFL Connector (20mm X 6mm)
