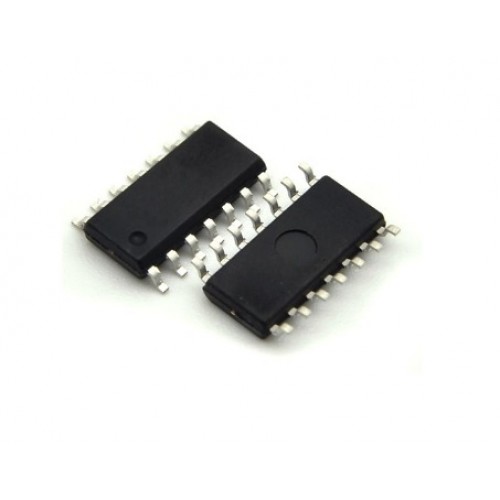

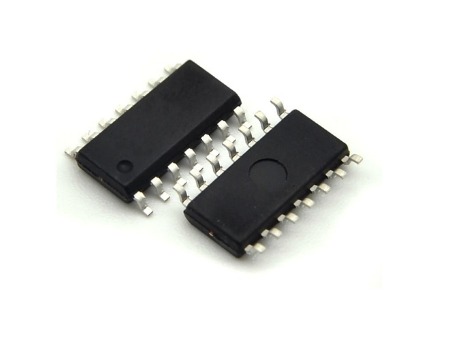

HC74 DUAL D FLIP FLOP WITH SET RESET IC

HC74 Dual D Flip Flop with Set Reset IC

HC74 IC for data storage, featuring dual D flip-flops, set/reset inputs, and operates from 2V to 6V.

The HC74 Dual D Flip Flop with Set Reset IC is a versatile and efficient component in the realm of digital electronics. It features two independent D-type flip-flops, each capable of storing data on the rising edge of a clock signal. This IC is designed using CMOS technology, ensuring low power consumption and high noise immunity, making it ideal for various applications in sequential logic circuits.

Its asynchronous set (PRE) and reset (CLR) inputs provide flexibility in controlling the state of each flip-flop. The HC74 Dual D Flip Flop with Set Reset IC operates over a voltage range of 2V to 6V, making it suitable for a wide array of electronic projects. With a propagation delay of approximately 12ns at 5V, it ensures quick data transfer and processing.

Applications of the HC74 Dual D Flip Flop with Set Reset IC include data storage and transfer, frequency division, state machines, and counters. Discover how this IC can enhance your designs and improve performance across your electronic projects.

Explore the reliability of the HC74 Dual D Flip Flop with Set Reset IC at DNA. We offer a comprehensive range of 7400 Series IC's to meet your electronic needs. Check other "7400 Series IC's" that we have in stock.

At DNA, we cater to the needs of Indian electronics buyers. If you're searching for specific parts, reach out to us. We can import components that are not readily available and support you in both retail and bulk orders. Explore related items like Analog IC, SMPS, Microcontroller, DC to DC Converter Module, IGBT, and Crystal. Contact Us.

Features of HC74 Dual D Flip Flop with Set Reset IC

• Dual D Flip-Flop Design
• Set and Reset Inputs
• Edge-Triggered Data Transfer
• Wide Voltage Range

Specification of HC74 Dual D Flip Flop with Set Reset IC

• Logic Family: CMOS (High-Speed HC series)
• Voltage Range: 2V to 6V
• Propagation Delay: ~12ns at 5V (typical)
• Input Capacitance: ~3.5pF (typical)
• Power Consumption: Extremely low quiescent current
• Output Drive Capability: Can source/sink up to ±6mA

Applications of HC74 Dual D Flip Flop with Set Reset IC

• Data Storage
• Frequency Division
• State Machines
• Counters
• Debouncing Circuits

Related Links for HC74 Dual D Flip Flop with Set Reset IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X HC74 Dual D Flip Flop with Set Reset IC
