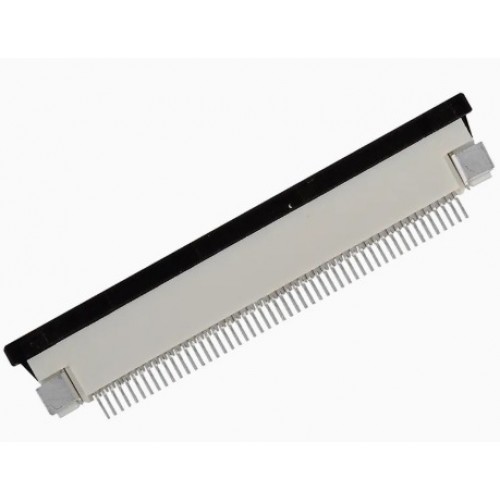

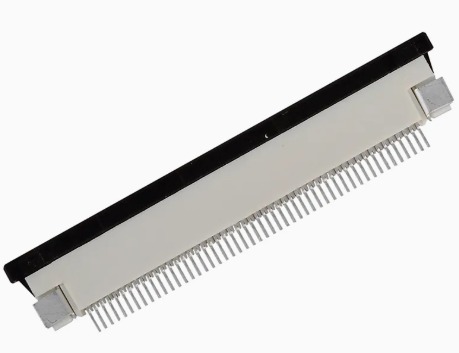

LCD Connector 40 Pin 0.5mm Top Entry

40-pin LCD Connector with 0.5mm pitch, top-entry design, and high reliability features.

The LCD Connector 40 Pin 0.5mm Top Entry is designed for efficient connections in compact electronic devices. With a 40-pin configuration and 0.5mm pitch, it ensures reliable signal transmission while saving space. This connector features a top-entry design, making installation straightforward in devices like smartphones, tablets, and laptops. Its durable housing and gold or tin-plated contacts guarantee high reliability across various applications.

Engineered for versatility, the LCD Connector 40 Pin 0.5mm Top Entry operates reliably in temperatures ranging from -40°C to +85°C. It supports a voltage rating of typically 50V and a current rating of up to 0.5A per pin. This makes it suitable for use in control panels, human-machine interfaces, and medical devices, ensuring seamless functionality in critical applications.

Explore the potential of the LCD Connector 40 Pin 0.5mm Top Entry for your next project. Designed for wide compatibility, this connector meets the demands of modern electronics while providing ease of use and durability. Enhance your devices' performance with this essential component.

At DNA, we provide a comprehensive range of high-quality Connectors and Cables. Explore the products from leading brands and enhance your electronic projects. Check other "Connectors and Cables" that we have in stock.

If you need other electronic components like MOSFETs, Microcontrollers, or LCDs, reach out to us. We can help you find hard-to-locate parts and can also import items as needed. Contact Us.

Features of LCD Connector 40 Pin 0.5mm Top Entry

• Compact Design: 0.5mm pitch
• Top-Entry Accessibility: Easy access from the top side
• High Reliability: Gold or tin-plated contacts
• Durable Housing
• Wide Compatibility

Specification of LCD Connector 40 Pin 0.5mm Top Entry

• Number of Pins: 40
• Pitch: 0.5mm
• Connector Type: Top-entry
• Mounting Style: Surface mount (SMT) or through-hole
• Voltage Rating: Typically 50V
• Current Rating: Up to 0.5A per pin
• Operating Temperature: -40°C to +85°C

Applications of LCD Connector 40 Pin 0.5mm Top Entry

• Smartphones
• Tablets
• Laptops
• Smartwatches
• Medical Devices
• Control Panels

Package Includes

• 1 X LCD Connector 40 pin 0.5mm Top Entry
