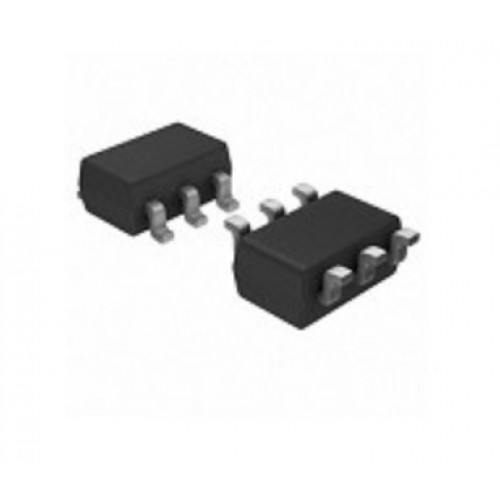

Product Images are shown for illustrative purposes only and may differ from actual product.

LD7536R Green Mode PWM Controller SMD IC

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-12-13
SKU: 8995 | DAI066

Rs. 109.03 (inc GST)
Rs.92.40 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LD7536R Green Mode PWM Controller SMD IC

LD7536R PWM Controller for SMPS with low startup current <30µA and built-in protections.

The LD7536R Green Mode PWM Controller SMD IC is designed for efficient power management in switch-mode power supplies. This component operates with a low startup current of less than 30µA, making it ideal for battery chargers and adapters. It includes features like built-in over-voltage and over-temperature protection, ensuring reliable performance in consumer electronics.

This PWM controller enhances energy efficiency through its green-mode operation. The internal slope compensation and leading-edge blanking improve overall performance, making it a vital component in power supply designs. The LD7536R Green Mode PWM Controller SMD IC is suitable for various applications, including battery chargers and consumer electronic power supplies.

For engineers and developers looking to optimize their power supply designs, the LD7536R Green Mode PWM Controller SMD IC offers a compact solution. With its integrated features, it supports efficient operation and ensures device protection, catering to the needs of the Indian market seeking reliable power management solutions.

Explore top-quality power management solutions at DNA, featuring the LD7536R from a trusted manufacturer. Discover the range of Power Devices we offer. Check other "Power Devices" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import hard-to-find parts and support both retail and bulk orders. Explore related items like Programmers, Connectors, LCDs, HMI Displays, Digital ICs, and Crystals. Contact Us.

Features of LD7536R Green Mode PWM Controller SMD IC

Built-in Under Voltage Lockout (UVLO)
Low startup current (<30µA)
Green-mode control for power-saving operation
Internal slope compensation
Over Voltage, Over Load, and Over Temperature Protection

Specification of LD7536R Green Mode PWM Controller SMD IC

Startup Current: <30µA
Operating Current: 2.5mA (typ)
UVLO Threshold: 16V (on), 10V (off)
Package: SOP-8

Applications of LD7536R Green Mode PWM Controller SMD IC

Switch Mode Power Supplies (SMPS)
Battery chargers and adapters
Consumer electronic power supplies

Package Includes

1 X LD7536R Green Mode PWM Controller SMD IC
