Product Images are shown for illustrative purposes only and may differ from actual product.

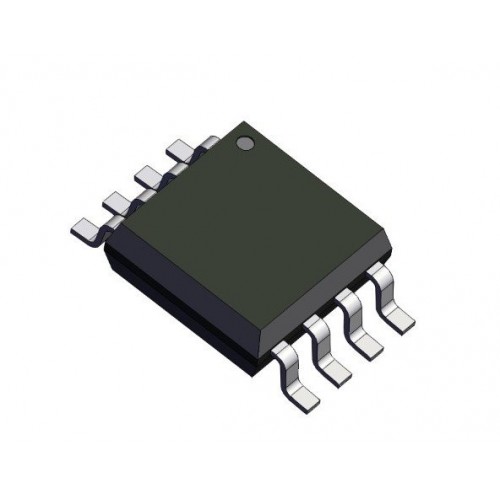

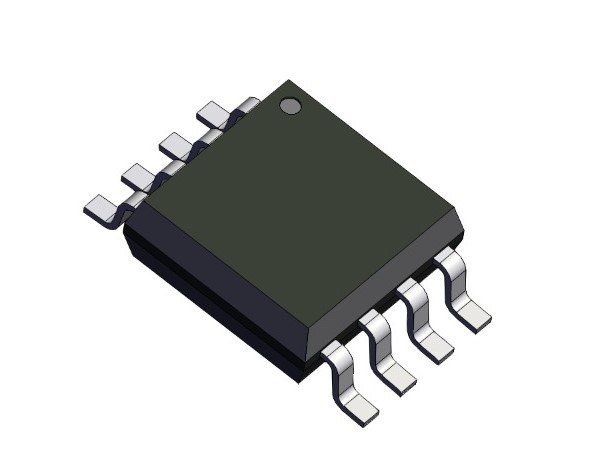

LM358DT SMD IC
- Stock: 20
- SKU: 7130 | DAB624
-
Rs. 20.06 (inc GST)
Rs.17.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
LM358DT SMD IC
LM358DT SMD IC
The LM358 contains two independent high gain operational amplifiers, low power, dual-channel op-amp. It can handle voltage from 3V to 32V DC supply and current up to 20mA per channel. As it is a single supply, It eliminates the need for a dual power supply, thus simplifying design and basic application use. A drawback of it is that the single supply does not offer a negative voltage supply. Due to this, the output will not be able to go below 0 volts.LM-358 has a lot of amazing features including, wide supply ranges, low supply current drain, independent of supply voltage, wide unity-gain bandwidth, input common-mode voltage range including ground, low input bias, and open-loop differential voltage gain, internal frequency compensated for unity gain etc.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of LM358DT SMD IC
- Short Circuit Protected Outputs
- True Differential Input Stage
- Single Supply Operation: 3.0 V to 32 V
- Low Input Bias Currents
- Internally Compensated
- Common Mode Range Extends to Negative Supply
- Single and Split Supply Operation
- Similar Performance to the Popular MC1558
- ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation
Specifications of LM358DT SMD IC
- Frequency compensation implemented internally
- Large DC voltage gain: 100 dB
- Wide bandwidth (unity gain): 1.1 MHz (temperature compensated)
- Very low supply current per channel independent of supply voltage
- Low input bias current: 20 nA (temperature compensated)
- Low input offset voltage: 2 mV
- Low input offset current: 2 nA
- Input common-mode voltage range includes negative rails
- Differential input voltage range equal to the power supply voltage
Package Includes
1 x LM358DT SMD IC
