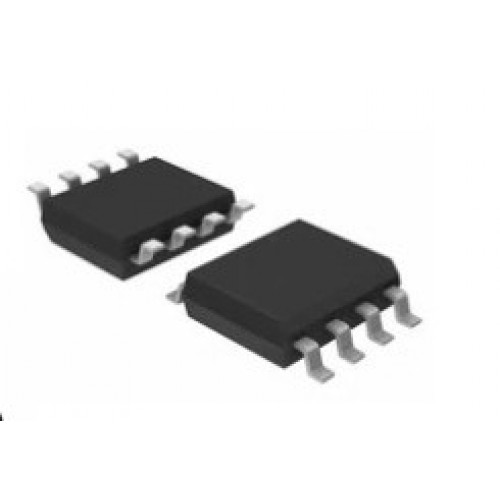

LM385 (2.5v) Voltage Reference SMD IC

LM385 (2.5v) Voltage Reference SMD IC

The LM385 is a low-dropout (LDO) voltage reference diode with an output voltage of 2.5V, designed for high-accuracy applications. The IC is packaged in an SMD (Surface-Mount Device) form factor for efficient, space-saving integration into modern electronic designs. It provides a constant 2.5V output even under varying load conditions, making it ideal for applications requiring stable reference voltages, such as precision analog circuits, digital-to-analog conversion, or power regulation systems.

DNA solutions, Nashik has various types of Reference IC's. Check out our complete collection of Reference IC's.

• Low Operating Current: The IC operates with a very low quiescent current, typically in the microampere range

• Wide Temperature Stability: The voltage reference maintains a stable output over a wide temperature range, typically from -40°C to +85°C or even up to +125°C

• Low Output Impedance: Ensures reliable performance in precision applications with low output impedance

• Easy Integration: Available in a small SMD package, making it easy to integrate into modern compact electronic systems

Specifications of LM385 (2.5v) Voltage Reference SMD IC

• Output Voltage (Vref): 2.5V

• Tolerance: ±1% (initial), typically ±0.5% at 25°C

• Output Current: Can supply up to 1 mA

• Temperature Coefficient: Typically 30 ppm/°C

• Operating Temperature Range: -40°C to +125°C

• Dropout Voltage: Typically 0.3V at 1mA

• Package Type: SMD

Applications of LM385 (2.5v) Voltage Reference SMD IC

• Voltage Regulation Systems

• Precision Measurement

• Temperature Measurement Systems

• Portable Devices

• Medical Devices

Package Includes

      1 x LM385 (2.5v) Voltage Reference SMD IC
