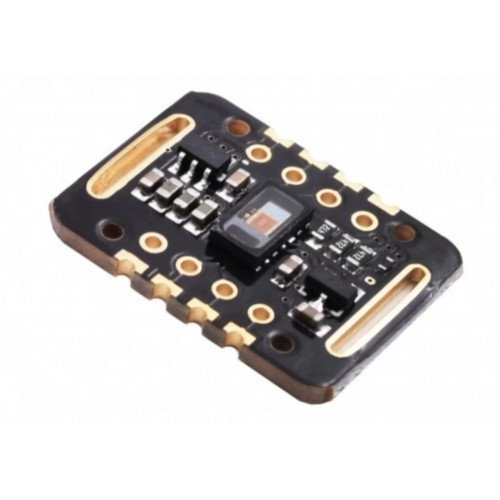

MAX30102 Heart Rate and Pulse Oximeter Sensor Module

Write a review | 1 reviews

Stock: 15
Availability: InStock priceValidUntil: 2026-03-04
Brand: Generic
SKU: 7366 | DAF238

Rs. 171.10 (inc GST)
Rs.145.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MAX30102 Heart Rate and Pulse Oximeter Sensor Module

MAX30102 Heart Rate and Pulse Oximeter Sensor Module

The MAX30102 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

DNA solutions, Nashik has various types of Sensor Module's. Check out our complete collection of Sensor Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MAX30102 Heart Rate and Pulse Oximeter Sensor Module

Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution
Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
Ultra-Low Power Operation for Mobile Devices
Fast Data Output Capability-High Sample Rates
-40°C to +85°C Operating Temperature Range

Specifications of MAX30102 Heart Rate and Pulse Oximeter Sensor Module

Module Type: Heart Rate and Pulse Oximeter Sensor
Sensor: MAX30102
Supply Voltage (VDD): 1.8V (logic), 3.3V (LED)
Operating Current: Low Power: 600 µA (typical)
LED Current: Programmable from 0 to 50 mA
Data Output Rate: Programmable (50-4000 samples per second)

Package Includes

1 x MAX30102 Heart Rate and Pulse Oximeter Sensor Module
