Product Images are shown for illustrative purposes only and may differ from actual product.

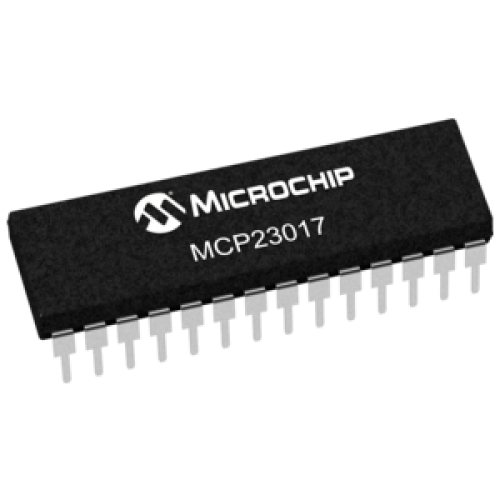

MCP23017 I/O Expander IC with I2C interface

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-13
Brand: Microchip
SKU: 654 | DAA045

Rs. 268.45 (inc GST)
Rs.227.50 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MCP23017 I/O Expander IC with I2C Interface

MCP23017 General Purpose 16 bit parallel IO Expander IC with I2C Interface

The MCP23017 provides 16-bit, general purpose parallel I/O expansion for I2C bus applications. The MCP23017 Input Output expander IC consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.

Features of MCP23017 I/O Expander with I2C Interface

16-bit input/output port expander with interrupt output
Cascadable for up to 8 devices on one bus
25mA sink/source capability per I/O
Supports 100kHz, 400kHz and 1.7MHz I2C™Compatible compatible modes
Max. Bus Frequency 1700(kBits/s)
Operating Voltage Range 1.8 to 5.5 (V)
Operating Temp Range -40 to 125 (°C)

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
