Meanwell EDR-120-48 SMPS

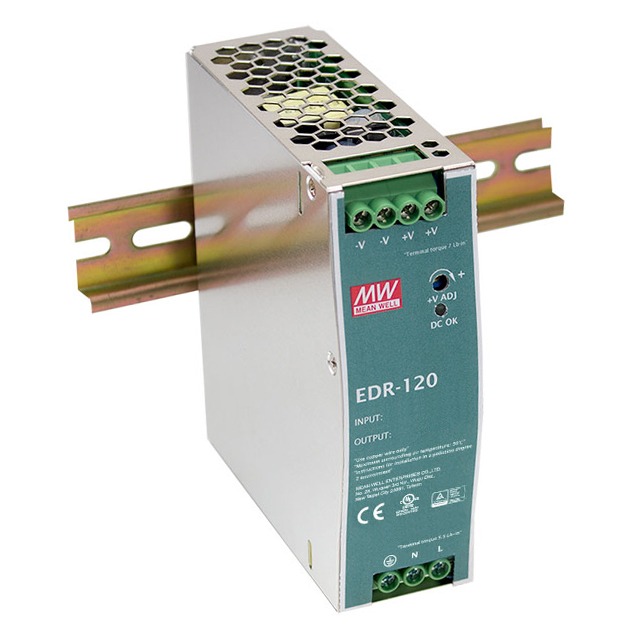

EDR-120-48: 120 Watt 48 Volt Meanwell DIN Rail SMPS

The Meanwell EDR-120-48 is an industrial-grade 120 Watt DIN rail-mounted power supply designed for space-saving installation in control cabinets. It accepts a wide AC input range from 90 to 264 VAC and delivers a regulated 48 Volt DC output at 2.5 Ampere. With high efficiency up to 89%, the unit supports free-air convection cooling and can operate in ambient temperatures from –20°C to +60°C. The Meanwell EDR-120-48 also features overload, overvoltage, and short circuit protection, making it ideal for industrial automation, process control, and machinery applications.

DNA is a trusted supplier of Meanwell SMPS in India, offering retail and bulk purchase options. We stock popular Meanwell products like AC-DC converters, DC-DC converters, DIN rail power supplies, and LED drivers, sourced directly from authorized distributors and ready for quick dispatch.

Can’t find Electronic Component you’re looking for? Our team can source it for you – just get in touch.

Features of Meanwell EDR-120-48 SMPS

• Universal AC input / Full range: 90–264 VAC, 127–370 VDC
• Output: 48 Volt DC, 2.5 Ampere, 120 Watt
• High efficiency up to 89%
• DIN rail TS-35/7.5 or 15 mountable
• Cooling by free air convection
• Wide operating temperature range: –20°C to +60°C
• Overload, overvoltage, and short circuit protection
• UL 508 (industrial control equipment) approved
• LED indicator for power on
• 3-year manufacturer warranty
• Compact design suitable for industrial control panels

Specifications of Meanwell EDR-120-48 SMPS

• Output Voltage: 48 Volt DC
• Rated Current: 2.5 Ampere
• Rated Power: 120 Watt
• Voltage Adj. Range: 48 – 55 Volt
• Input Voltage Range: 90–264 VAC / 127–370 VDC
• Frequency Range: 47–63 Hz
• Efficiency (Typ.): 88%–89%
• Inrush Current: 40A max at 230VAC
• Hold up Time: 60ms at 230VAC
• Operating Temp. Range: –20°C to +60°C (derating above 50°C)
• Cooling Method: Natural air convection (Fanless)
• Dimensions (L×W×H): 40 × 125.2 × 113.5 mm
• Protections: Short circuit, overload, overvoltage
• Certifications: UL, CE, EAC
• Mounting Type: DIN Rail (TS-35/7.5 or TS-35/15)

Applications of Meanwell EDR-120-48 SMPS

• Industrial automation and machinery
• Control cabinets and PLC systems
• Process control equipment
• Factory instrumentation
• Building automation systems
• Embedded systems requiring DIN rail power
• LED lighting and signage control systems

Related Links

• Meanwell EDR-120-48 SMPS Datasheet
• Explore more Meanwell SMPS models

Package Include

• 1 x Meanwell EDR-120-48 SMPS
