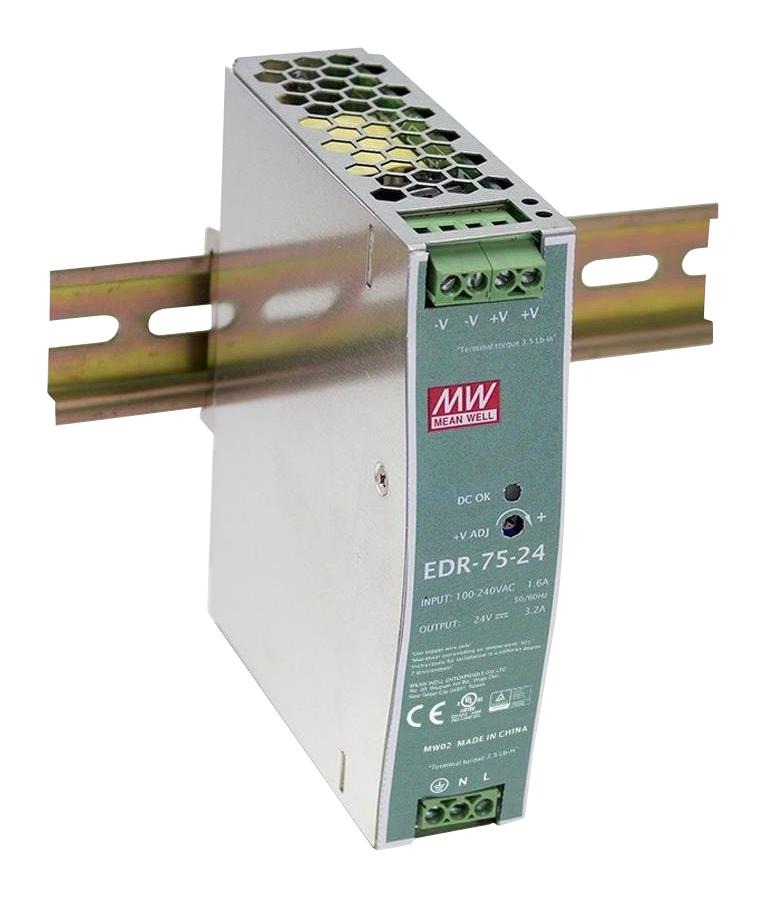

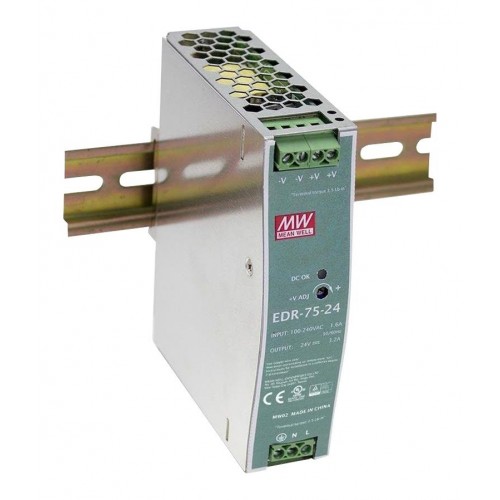

Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

Mean Well EDR-75-24 single-output DIN-rail power supply converts AC or DC input to 24 V DC, with a 3.2 A output and 76.8 W rated power.

The Mean Well EDR-75-24 is a single-output DIN-rail power supply for industrial equipment. It converts AC or DC input to a 24 V DC output, rated at 3.2 A and 76.8 W. Its wide input range supports different power sources in control cabinets.

The slim 32 mm body helps save cabinet space, while the metal housing supports heat dissipation. Free-air convection cools the unit without a fan. Overload protection uses constant-current limiting and recovers after the fault clears. The unit also fits TS-35/7.5 and TS-35/15 rails.

Use this 24 V power supply in industrial control systems, factory automation, semiconductor fabrication equipment and electro-mechanical apparatus. Its integrated AC/DC input and protective functions support power needs in industrial installations.

Find Mean Well power supplies at DNA, with options for industrial control and other electronic needs. Browse our Meanwell SMPS range to compare products for your setup. Check other Meanwell SMPS that we have in stock

Indian electronics buyers can contact DNA if a part is hard to find. We offer import support and retail or bulk assistance for components such as IGBT, relays, sensors and DC to DC converter modules. Contact Us

Features of Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

• Free-air convection cooling
• Metal housing supports heat dissipation
• Constant-current overload limiting with automatic recovery after the fault clears
• Overvoltage and overtemperature faults shut down the output until power is cycled
• Fits TS-35/7.5 and TS-35/15 DIN rails

Specifications of Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

• Input voltage range: 90–264 VAC or 127–370 VDC
• DC output voltage: 24 V
• Rated output current: 3.2 A
• Rated output power: 76.8 W
• Output voltage adjustment range: 24–28 V
• Efficiency: 87.5% typical
• Operating temperature: −20 to +60 °C, refer to derating curve
• Dimensions (W × H × D): 32 × 125.2 × 102 mm

Applications of Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

• Industrial control systems
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Related Links for Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply

• Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well EDR-75-24 24 V, 3.2 A DIN-Rail Power Supply
