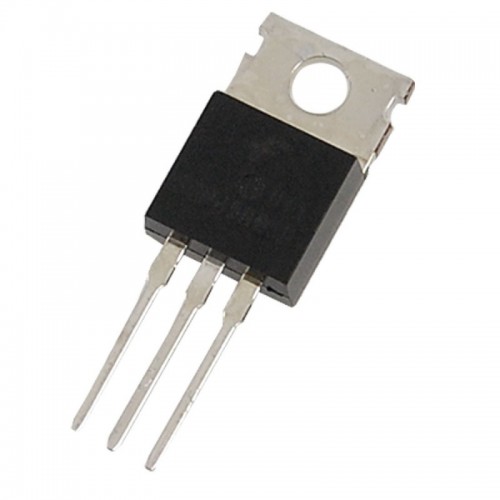

MJE13009 NPN Power Transistor

The MJE13009 is designed for high-voltage, high-speed power switching inductive circuits where fall time is critical.

This is NPN Transistor. They are particularly suited for 115 and 220V switch mode applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.

Features of MJE13009 Transistor

• VCEO 400V and 300 V

• Reverse Bias SOA with Inductive Loads @ TC = 100℃

• Inductive Switching Matrix 3 ~ 12 Amp, 25 and 100℃ tC @ 8 A, 100 is 120 ns (Typ).℃

• 700 V Blocking Capability

• SOA and Switching Applications Information.
