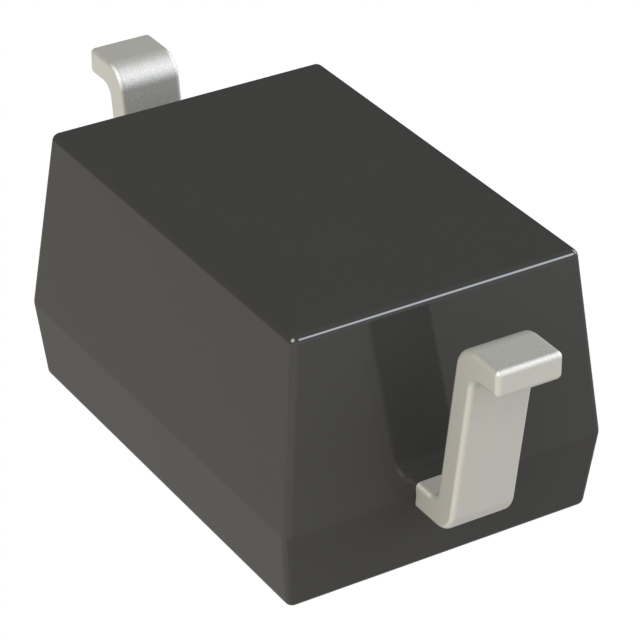

Product Images are shown for illustrative purposes only and may differ from actual product.

MMDL914T1G Small Signal Switching Diodes (SOD-323)

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-08
SKU: 8733 | DAH963

Rs. 9.82 (inc GST)
Rs.8.32 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MMDL914T1G Small Signal Switching Diodes (SOD-323)

MMDL914T1G Small Signal Switching Diodes (SOD-323)

The MMDL914T1G is a small-signal switching diode manufactured by ON Semiconductor, primarily designed for low-power, high-speed switching applications. It is housed in a SOD-323 package, which is a surface-mount device (SMD) type offering compact size for efficient use in small electronic circuits.

DNA solutions, Nashik has various types of Diode's. Check out our complete collection of Diode's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MMDL914T1G Small Signal Switching Diodes (SOD-323)

Small Package (SOD-323) : The SOD-323 package offers a compact form factor ideal for space-constrained applications. It is widely used for surface-mount technology (SMT) in modern electronic devices.
Low Forward Voltage Drop : 0.7V typical at 10mA, which allows the diode to operate efficiently without significant power loss, especially in low-voltage circuits.
High Reverse Voltage Capability : With a maximum reverse voltage of 100V, this diode can handle relatively high voltage levels, making it versatile for many switching and protection applications.
Surge Current Capability : The diode is capable of handling a peak forward surge current of up to 4A, making it robust enough for situations with high current pulses.

Specifications of MMDL914T1G Small Signal Switching Diodes (SOD-323)

Type :Small Signal Switching Diode
Package :SOD-323 (Surface Mount Device)
Maximum Reverse Voltage (V_R):100V
Maximum Forward Current (I_F):300mA
Forward Voltage (V_F):0.7V (typical at 10mA)
Type :Surface Mount (SMD)

Applications of MMDL914T1G Small Signal Switching Diodes (SOD-323)

Switching Circuits
Signal Processing
Protection Circuits
RF and Communication Circuits

Package Includes

1 x MMDL914T1G Small Signal Switching Diodes (SOD-323)

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
