13.56MHZ USB Desktop RFID Reader
- Stock: Out Of Stock
- SKU: 2051 | DAB810
-
Rs. 826.00 (inc GST)
Rs.700.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
13.56 Mhz USB RFID Reader

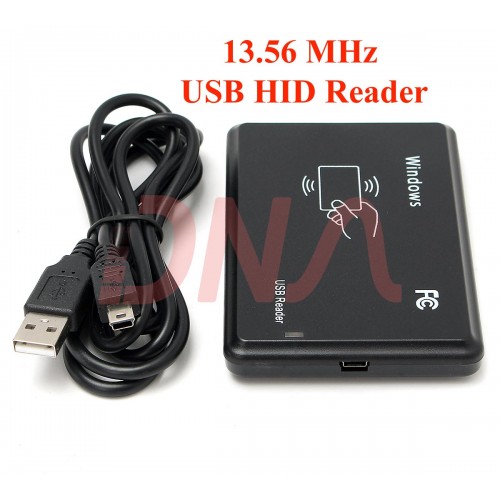

13.56 MHz contactless HID USB Proximity RFID Reader
This is a compact simple and fast 13.56Mhz contactless RFID Reader with a USB interface. It reads the ID number from the 14443A card or a compatible card. After detecting the card, the card number is sent directly via the USB interface, just like the entry number from the USB keyboard.
This 13.56Mhz Contactless USB RFID Reader is a standard HID devices, means you don't need to install any driver, the code can be read into any input editor. For example : Notepad, WORD and other text editing software.
Key Features of 13.56Mhz USB RFID Reader
- USB interface, no driver required.
- Reads the RFID card inside the ID number and send it to the computer via the USB interface.
- The output format can be selected by management cards.
- Support for 14443 cards
Specification of 13.56Mhz Desktop RFID Card Reader
- Power input : USB (from a PC)
- Interface : USB, 106bit / s, no additional driver required.
- Reading distances up to 8 cm
- Frequency : 13.56 MHz
- Temperature : -30 degrees Celsius to +60 degrees Celsius
- Humidity : 5% -95% Relative humidity No condensation Noise
- Visual signaling : LED output and buzzer
- Output card format : 8H10D
- USB cable length : approx. 120 cm / 47in
- Element size : 95 * 61 * 10 mm / 3.74 * 2.4 * 0.4 inches (L * W * H)
- Weight : 33 grams
How to Use
- Connect the card reader to the computer USB port with the given usb cable.
- The reader will 'Beep' sound and flash about that power successfully, and then half a second after the 'Beep' sound and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.
- Open EXCEL, MS word or Notepad,the card number would be input by self
Material Provided
- 1 X 13.56 Mhz Contactless RFID Card Reader
- 1 X USB Cable
Please Note RFID tags are not provided with this reader you will have to buy them separately.
