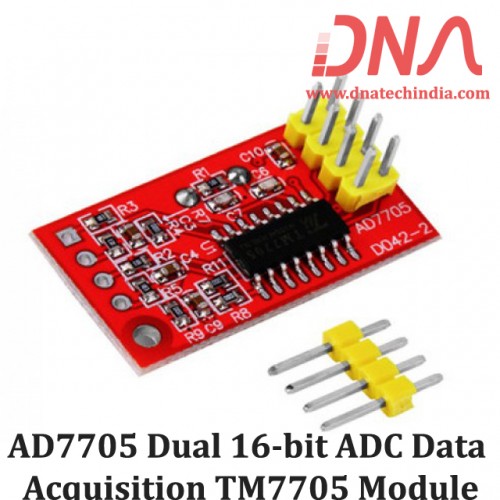

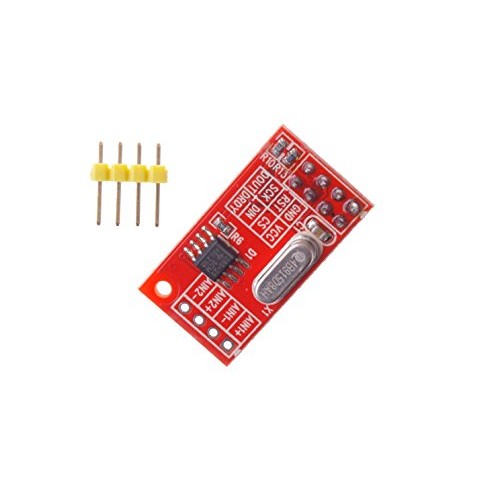

AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module


Write a review | 4 reviews

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-07-14

  • Brand: Generic
  • SKU: 593 | DAA769

Availability: InStock priceValidUntil: 2026-07-14

  • Rs. 460.20 (inc GST)
    Rs.390.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module

AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module

The AD7705 is analog-to-digital converters (ADC) with on-chip digital filtering, intended for the measurement of wide, dynamic range, low frequency signals, such as those in industrial-control or process-control applications. Each contains a (or charge-balancing) ADC, a calibration microcontroller with on-chip static RAM, a clock oscillator, a digital filter, and a bidirectional serial communication port.



If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module

  • 3.3V or 5.0V DC power supply

  • MCU interfaces : SPI

  • The main ADC chip : TM7705 (Shenzhen Tianwei original brand new chip, and AD7705 chip is fully compatible)

  • An external reference voltage LM285-2.5 (imported genuine original). Part of the low-end domestic counterparts using TL-431 is not a number as a reference, temperature stability and accuracy of the level difference. Please spotted.

  • The input circuit strip dividing resistor and RC filter, enabling customers to change their own gain range

  • The chip with a programmable gain amplifier, the gain range : 1-128 times

  • Chip buffer amplifier with input for direct connection of sensors.

Related Links

Package Includes

  • 1 x AD7705 Dual 16-bit ADC Data Acquisition TM7705 Module

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
