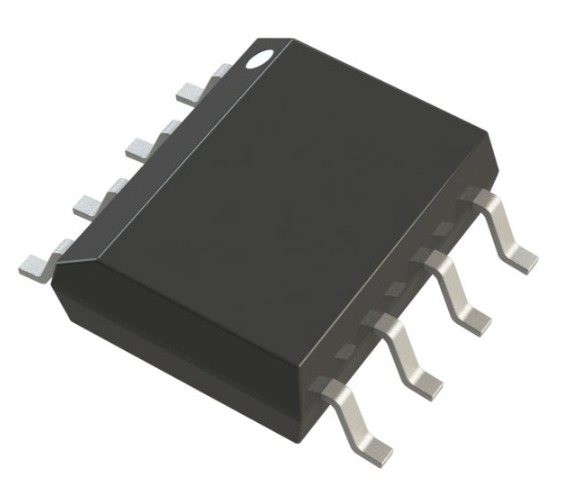

ADR4540BRZ R7 SMD IC ANALOG DEVICES

ADR4540BRZ R7 SMD IC ANALOG DEVICES

The ADR4540BRZ-R7 is a high-performance, low-noise, and low-drift voltage reference IC. It is part of the ADR45xx family designed to provide stable and accurate reference voltages for precision applications. The IC is based on a patented temperature-compensated bandgap design that ensures outstanding long-term stability and reliability.

DNA solutions, Nashik has various types of Analog Device. Check out our complete collection of Analog Devices.

• High Accuracy: Ensures precise output voltage for critical applications

• Low Drift: Temperature coefficient as low as 2 ppm/°C for high stability

• Low Noise: Optimized for low-output noise performance

• Wide Operating Temperature Range: Suitable for industrial and harsh environments

• High Output Drive: Capable of driving capacitive loads up to 10 mA

Specifications of ADR4540BRZ R7 SMD IC ANALOG DEVICES

• Reference Voltage: 4.096 V

• Initial Accuracy: ±0.02% (typical)

• Temperature Coefficient: 2 ppm/°C (maximum)

• Output Noise: 1.4 µV RMS (0.1 Hz to 10 Hz)

• Line Regulation: 4 ppm/V (typical)

• Load Regulation: 20 ppm/mA (typical)

• Supply Voltage Range: 4.5 V to 15 V

• Supply Current: 950 µA (typical)

Applications of ADR4540BRZ R7 SMD IC ANALOG DEVICES

• Data Acquisition Systems

• Test and Measurement Equipment

• Industrial Process Controls

• Medical Devices

• Telecommunication Systems

Package Includes

      1 x ADR4540BRZ R7 SMD IC ANALOG DEVICES
