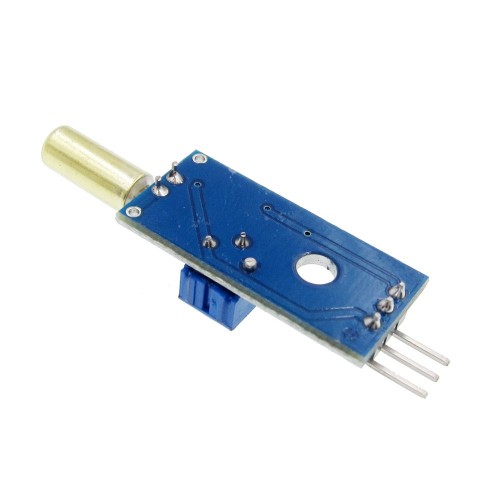

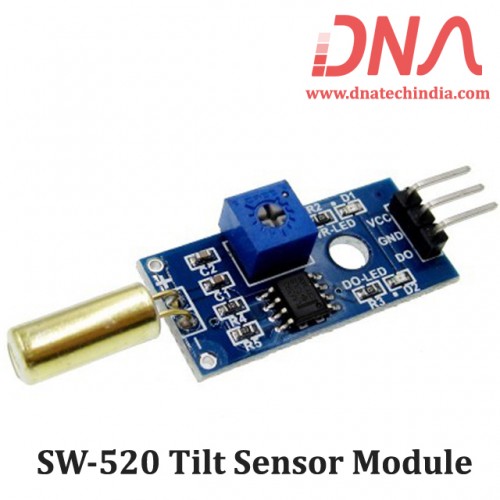

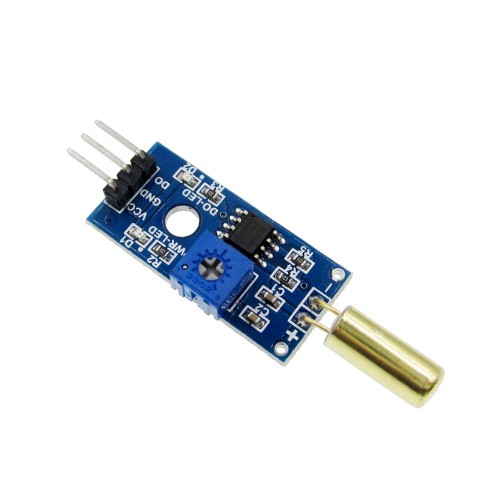

SW-520 Tilt Sensor module

  • Stock: 4
  • Brand: ITead
  • SKU: 2161 | DAB539
  • Rs. 99.12 (inc GST)
    Rs.84.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

SW-520D Tilt Sensor Module

TILT SENSOR MODULE is a device used for knowing the planar movement

TILT SENSOR MODULE is a device used for knowing the planar movement. Although they are available in various types their basic function remains the same. Their function is to detect the plane shift from horizontal to vertical and sent of a signal when it happens. There are modules which could sense even small plane shifts but here we are going to discuss about simple contact type TILT SENSOR module. Here we are going to use SW-520D TILT SENSOR MODULE.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

TILT SENSOR MODULE Features and Specifications

  • Supply voltage: 3.3 V to 5V
  • Output can directly connected to controller
  • TTL level output
  • Maximum output current : 15mA
  • Can work on low voltages
  • Maximum operating temperature: 0°C to + 80°C
  • Easy interface
  • Long life.

Application For SW-520

  • Security systems.
  • Digital cameras
  • Toys
  • Motors
  • Robotic arms
  • Vending machines.
  • Measuring instruments.
  • Hobby projects.

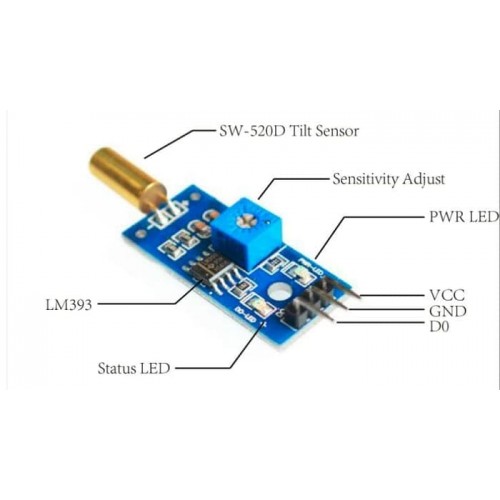

TILT SENSOR MODULE Pin Configuration

TILT SENSOR MODULE is three pin devices  All three pins are compulsory for using the module.

  • GND : Connected to GROUND
  • VCC  : Connected to +5V
  • DO :   Output of  TILT SENSOR

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
