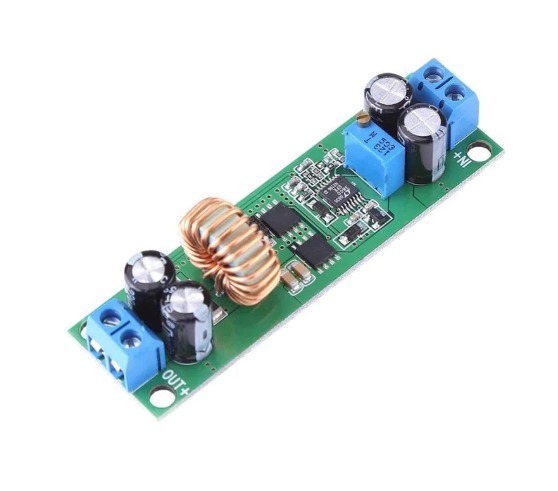

DC-DC Buck Converter DC-DC 6.5V-60V to 1.25V-30V Buck Voltage Regulator Synchronous Rectification Power Converter Module Adjustable - RS2904

DC-DC Buck Converter DC-DC 6.5V-60V to 1.25V-30V Buck Voltage Regulator Synchronous Rectification Power Converter Module Adjustable - RS2904

The RS2904 is a buck voltage regulator that efficiently steps down DC voltage from a wide input range of 6.5V to 60V to an adjustable output range of 1.25V to 30V. The module is equipped with synchronous rectification, which improves efficiency compared to traditional diode-based buck converters. This makes it an ideal choice for applications requiring precise and efficient power regulation in various electronic devices, including communication systems, industrial control, LED drivers, and more.

DNA solutions, Nashik has various types of Converter Module's. Check out our complete collection of Converter Module's.

• Wide Input Voltage: Works with input voltages from 6.5V to 60V (DC)

• Adjustable Output Voltage: You can set the output voltage from 1.25V to 30V, depending on your needs

• High Efficiency: It uses synchronous rectification to convert power efficiently, with up to 95% efficiency

• Power Output: Supports 2A to 6A output current (depends on model and cooling)

• Protection Features: Includes safety features like overcurrent protection, overvoltage protection, and short-circuit protection

Specifications of DC-DC Buck Converter DC-DC 6.5V-60V to 1.25V-30V Buck Voltage Regulator Synchronous Rectification Power Converter Module Adjustable - RS2904

• Input Voltage Range: 6.5V to 60V (DC)

• Output Voltage Range: 1.25V to 30V (Adjustable)

• Output Current Range: Typically 2A to 6A

• Efficiency: Up to 95%

• Switching Frequency: 150 kHz to 400 kHz

• Ripple and Noise: Typically <50 mV

• Operating Temperature Range: -40°C to +85°C

Applications of DC-DC Buck Converter DC-DC 6.5V-60V to 1.25V-30V Buck Voltage Regulator Synchronous Rectification Power Converter Module Adjustable - RS2904

• LED Drivers

• Battery-Powered Devices

• Communication Equipment

• Industrial Use

• Solar Power Systems

Package Includes

      1 x DC-DC Buck Converter DC-DC 6.5V-60V to 1.25V-30V Buck Voltage Regulator Synchronous Rectification Power Converter Module Adjustable - RS2904
