E32-900T30S Lora Wireless Transmitter and Receiver RF Module

E32-900T30S Lora Wireless Transmitter and Receiver RF Module

E32-900T30S Lora Wireless Transmitter and Receiver RF Module

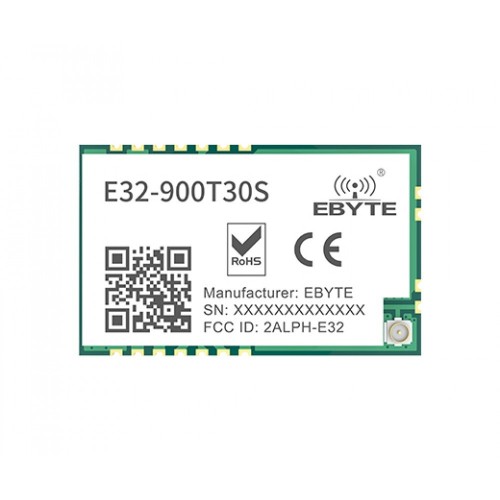

E32-900T30 S is a wireless serial port module ( TTL level) based on Semtech's SX1276 radio frequency chip, transparent transmission,working in the 8 62 ~ 930MHz frequency band, using LoRa spread spectrum technology.SX1276 supports LoRa spread spectrum technology. LoRa direct sequence spread spectrum technology has the advantages of longer communication distance, strong anti-interference ability, and strong confidentiality. The SX1276 is a milestone in the field of low-speed communication and is favored by people in the industry. The default air rate of this series is 2.4kbps , the transmit power is 30dBm, and industrial-grade materials are used to ensure its stability and consistency. At present, it has been in stable mass production, and has been widely used in the three-meter industry,Internet of Things transformation, smart home and other fields.

DNA solutions, Nashik has various types of Modules's. Check out our complete collection of Modules's.

• Support 868/915 MHz EU common frequency band

• Support data transmission rate of 0.3k～19.2kbps


• Industrial-grade standard design, support long-term use at -40 ~ + 85 ℃

• SMA-K interface for easy connection of coaxial cable or external antenna

• Support advanced LoRa modulation , with the advantage of long-distance anti-interference

• Under ideal conditions, the communication distance can reach 8.0 km, and the transmission distance is better than that of traditiona FSK


• Support fixed-point transmission, broadcast transmission, channel monitoring


• Support FEC forward error correction to improve communication stability


• Support air wake-up (ultra-low power consumption), suitable for battery applications


• Adopt industrial-grade active temperature-compensated crystal oscillator to ensure its stability and consistency

• maximum transmit power is 1W, and the software is multi-level adjustable


• Support 3.3 ~ 5.5 V power supply, more than 5.0 V power supply can ensure the best performance

Package Includes

1 x E32-900T30S
