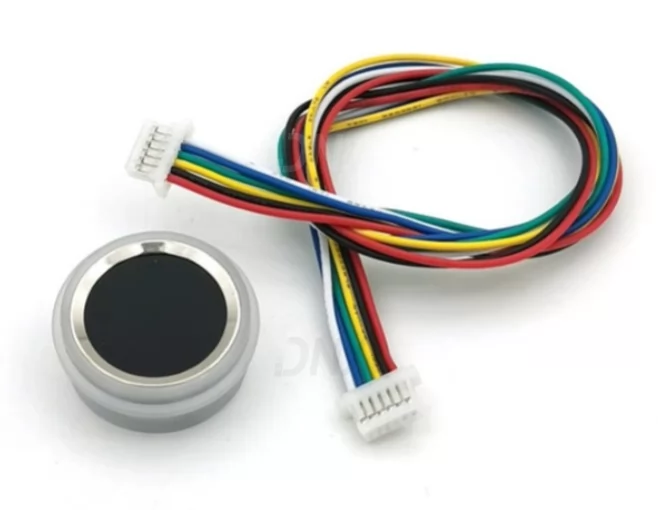

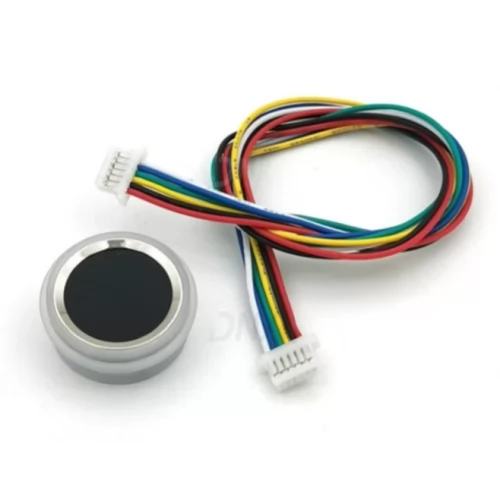

GROW R502-F LED Capacitive Fingerprint Sensor Module
- Stock: 5
- SKU: 3761 | DAG074
-
Rs. 2,088.60 (inc GST)
Rs.1,770.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
GROW R502-F LED Capacitive Fingerprint Sensor Module
GROW R502-F LED Capacitive Fingerprint Sensor Module
The R502-F module uses capacitive fingerprint sensing, which is more accurate and responsive compared to optical fingerprint sensors. The capacitive technology captures the fingerprint's detailed ridges and valleys, ensuring reliable recognition even under challenging conditions. This module integrates an LED indicator to provide visual feedback during fingerprint capture. It supports UART communication for easy integration with microcontrollers or external systems and offers fast fingerprint enrollment, storage, and matching capabilities.
DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of GROW R502-F LED Capacitive Fingerprint Sensor Module
- Capacitive Fingerprint Sensor: Ensures high accuracy and security by capturing detailed fingerprint data.
- LED Indicator: Integrated LED for visual feedback during the fingerprint capture process.
- Fast Recognition: High-speed fingerprint recognition and matching with low latency.
- Standalone Operation: Capable of storing and processing fingerprint data internally.
- High Capacity: Can store and manage a large number of fingerprint templates.
- Anti-Spoofing Technology: Protects against the use of fake fingerprints, enhancing security.
- Low Power Consumption: Designed to operate efficiently with minimal power usage, suitable for battery-operated systems.
Specifications of GROW R502-F LED Capacitive Fingerprint Sensor Module
- Interface:RS232 (TTL)
- Waterproof: IP65
- Resolution:508 DPI
- Voltage : DC 3.3V
- Working current(Fingerprint acquisition):20mA
- Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA
- Fingerprint module external size: diameter 21.5mm
- Fingerprint module inner size: diameter 19.4mm
- Effective collection area: diameter 15mm
Package Includes
- 1 x GROW R502-F LED Capacitive Fingerprint Sensor Module
