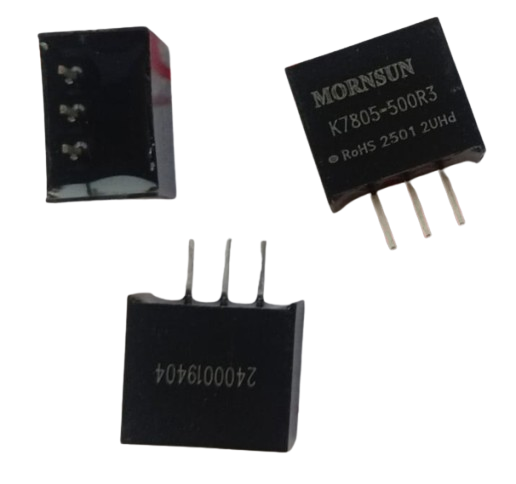

Product Images are shown for illustrative purposes only and may differ from actual product.

Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Name: Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module
Brand: Mornsun
SKU: DAI017
Price: 163.55 INR
Availability: InStock
Rating: 4 (2 reviews)

Write a review | 2 reviews

Stock: 200
Availability: InStock priceValidUntil: 2026-12-12
Brand: Mornsun
SKU: 8980 | DAI017

Rs. 163.55 (inc GST)
Rs.138.60 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Mornsun K7805-500R3 non-isolated DC/DC converter module with regulated 5V output, 500mA output current and 6.5–36V input range.

The Mornsun K7805-500R3 is a non-isolated DC/DC converter module that converts a 6.5–36V DC input to a regulated positive 5V output. It supplies up to 500mA for electronic circuits that need a steady low-voltage rail from a higher DC supply.

Its switching design provides a compact alternative to a linear regulator. The module needs no heat sink, and its pins match the LM78XX linear regulator series, which can simplify use in compatible board layouts. Continuous, self-recovering short-circuit protection helps the output recover when the fault clears.

Use this 5V 500mA converter in industrial control, instrumentation and electric power equipment. Its wide input range supports designs powered by different DC supply levels.

DNA stocks Mornsun power modules for electronics design, repair and production needs. Browse our DC to DC Converter Modules to find options for your next project. Check other DC to DC Converter Modules that we have in stock

For Indian electronics buyers, DNA offers retail and bulk support, plus import support for parts that are not listed. Contact us about Digital ICs, DC to DC Converter ICs, diodes, development modules, resistors or crystals. Contact Us

Features of Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Switching regulator design provides a regulated positive output
Continuous, self-recovering output short-circuit protection
Pin-out compatible with LM78XX linear regulators
No heat sink required

Specifications of Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Input voltage range: 6.5–36 VDC for positive 5 V output
Output voltage: 5.0 VDC, positive output
Output current: 500 mA for positive output
Full-load efficiency: 90% typical at minimum input voltage and 84% typical at maximum input voltage
Operating temperature: −40°C to +85°C, with output power derating
Dimensions: 11.60 × 7.55 × 10.16 mm
Maximum capacitive load: 680 µF at nominal input voltage and full load

Applications of Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Industrial control
Instrumentation
Electric power

Package Includes

1 X Mornsun K7805-500R3 5V 500mA Non-Isolated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
