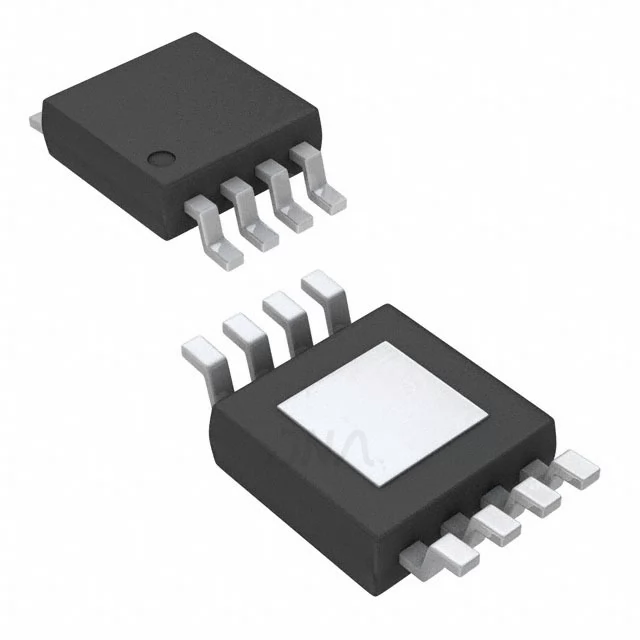

MP1584 Switching Step Down Regulator IC (SOIC8)

MP1584 Switching Step Down Regulator IC (SOIC8)

The MP1584 is a high-frequency step-down switching regulator with an integrated internal high-side high-voltage power MOSFET. It provides 3A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 100µA operational quiescent current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load conditions to reduce the switching and gate-driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable fault-tolerant operation. By switching at 1.5MHz, the MP1584 is able to prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications. The MP1584 is available in a thermally enhanced SOIC8E package.

DNA solutions, Nashik has various types of SMD IC. Check out our complete collection of SMD IC's.

• High-Efficiency Pulse Skipping Mode for Light Load


• Internal Soft-Start


• Wide 4.5V to 28V Operating Input Range


• Programmable Switching Frequency from 100kHz to 1.5MHz


• Ceramic Capacitor Stable


• Internally Set Current Limit without a Current Sensing Resistor


Applications of MP1584 Switching Step Down Regulator IC (SOIC8)

• High Voltage Power Conversion


• Industrial Power Systems


• Distributed Power Systems


• Automotive Systems


• Battery Powered Systems


Specifications of MP1584 Switching Step Down Regulator IC (SOIC8)

• Product Type: Switching Voltage Regulators


• Manufacturer: Monolithic Power Systems


• Series: MP1584


• Number of Outputs: 1 Output


• Switching Frequency: 1.5 MHz


• Moisture Sensitive: Yes


• Mounting Style: SMD/SMT


• Package/Case: SOIC-8E


• Input Voltage, Max: 28 VDC


• Output Voltage: 800 mV To 25 V


• Output Current: 3 A


Package Includes

1 x MP1584 Switching Step Down Regulator IC (SOIC8)
