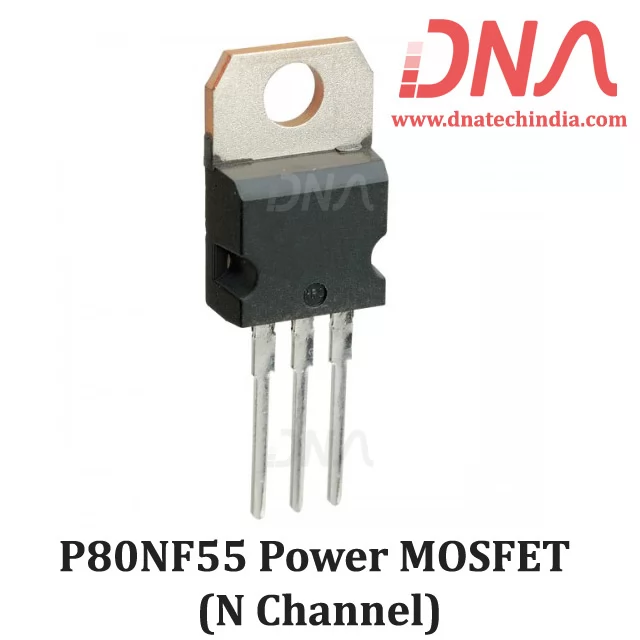

P80NF55 N-Channel Power MOSFET

Write a review | 0 reviews

Stock: 50

SKU: 0719 | DAA394

Rs. 80.24 (inc GST)
Rs.68.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Raspberry Pi 3B+ In Stock

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

P80NF55 N Channel Power MOSFET

P80NF55 is a N-channel 55 V, 80 Ampere Single Power MOSFET in a TO-220 package

P80NF55 Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

P80NF55 N-Channel Power MOSFET comes in TO-220 package.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of P80NF55 Power MOSFET

Standard threshold drive
V_DS Drain-source voltage (V_GS = 0) 55 V
V_GS Gate- source voltage ±20 V
I_D Drain current (continuos) at T_C = 25 °C 80 A
I_D Drain current (continuos) at T_C = 100 °C 80 A
I_DM Drain current (pulsed) 320 A
P_TOT Total dissipation at T_C = 25 °C 300 W
Derating factor 2 W/°C
T_j Operating junction temperature
T_stg Storage temperature -55 to 175 °C

Application of P80NF55 Power MOSFET

Switching applications

P80NF55 Power MOSFET Datasheet
