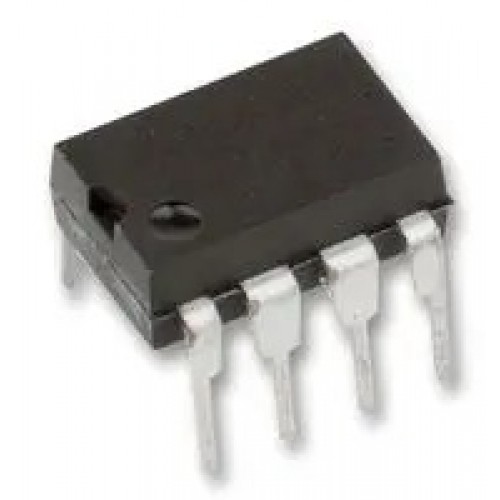

• PIC12F683 Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

PIC12F683 Microcontroller

  • Stock: Out Of Stock
  • Brand: Microchip
  • SKU: 3810 | DAF912
  • Rs. 101.48 (inc GST)
    Rs.86.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PIC12F683 8-Bit Microcontroller

PIC12F683 8-Pin Flash-Based, 8-Bit CMOS Microcontrollers with nanoWatt Technology

The PIC12F683-I/P is a 8-pin/8-bit flash-based CMOS Microcontroller with nanoWatt technology. The low pin-count (8) PIC® flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0 to 5.5V, on-board EEPROM data memory.

Standard analogue peripherals include up to 4 channels of 10-bit A/D, an analogue comparator module with a single comparator, programmable on-chip voltage reference and a standard capture/compare/PWM (CCP) module. The EEPROM data memory of PIC12F683 microcontroller is readable and writable during normal operation (full VDD range). This memory is not directly mapped in the register file space. Instead, it is indirectly addressed through the special function registers.

DNA solutions, Nashik has various types of PIC Microcontrollers. Check out our complete collection of  PIC Microcontrollers.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PIC12F683 Microcontroller

  • 256-byte EEPROM data memory
  • Extended WDT
  • MPLAB® ICD-2 programming support or debugging support with optional header adapter
  • Interrupt capability
  • 8-level Deep hardware stack
  • Direct, indirect and relative addressing modes
  • Power-saving sleep mode
  • Power-on reset (POR)
  • Power-up timer (PWRT) and oscillator start-up timer (OST)
  • Brown-out reset (BOR) with software control option
  • Multiplexed master clear with pull-up/input pin
  • Programmable code protection
  • 50nA at 2.0V Typical standby current
  • 1µA at 2.0V Typical Watchdog timer current

Application of PIC12F683 Microcontroller

  • Industrial
  • Automotive

    Package Includes

    1 x PIC12F683 Microcontroller

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
