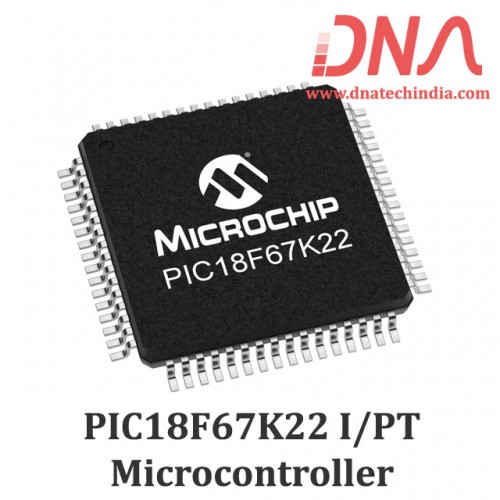

PIC18F67K22-I/PT Microcontroller (TQFP Package)

PIC18F67K22-I/PT Microcontroller

PIC18F67K22 PIC Microcontroller with 1-Mbit Enhanced Flash Microcontrollers with 12-Bit A/D and nanoWatt XLP Technology

Featuring nanoWatt XLP Technology, the PIC18F67K22 8-bit microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time and/or temperature measurement.

Robust features of PIC18F67K22-I/PT Microcontroller such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 53 general purpose I/O, give this cost-effective microcontroller seemingly limitless possibilities in a variety of applications where high performance with low cost is required.

PIC18F67K22 is Recommended for Automotive Design.

We have various types of Microcohip make Microcontrollers. Check our complete collection of PIC Microcontrollers.

Features of PIC18F67K22 Microcontroller

• nanoWatt XLP technology for low sleep, RTCC, LCD and WDT currents
• Low-Power BOR
• Ultra Low-Power Wake-Up
• Fast Wake-Up
• Low Input Leakage Currents
• Up to 16 MIPS Performance
• Operating Speed up to 64 MHz
• Operating Voltage Range: 1.8 to 5.5V
• 8 X 8 Single-Cycle Hardware Multiplier
• Three Internal Oscillators: 31 kHz, 500 kHz, 16 MHz
• Charge Time Measurement Unit for mTouch Sensing
• A/D Converter
• 12-bit Resolution
• 16 Channels
• Ten CCP/ECCP Modules
• Eleven 8/16-bit Timer/Counter Modules
• Three Analog Comparators
• Hardware Real-Time Clock and Calendar (RTCC)
• Two Master Synchronous Serial Port Modules

Specifications of PIC18F67K22 Microcontroller

• Max ADC Resolution (bits): 12

• Number of ADCs: 1
• Program Memory Size (KB): 128
• Capture/Compare/PWM (CCP): 7
• Number of Comparators: 3
• CPU Speed (MIPS/DMIPS): 16
• Data EEPROM (bytes): 1024
• DigitalTimerQty_16bit: 5
• Max 8 Bit Digital Timers: 6
• Enhanced Capture/Compare/PWM (ECCP): 3
• Ethernet: None
• I2C: 2
• Program Memory Type: Flash
• MSSP: 2
• mtrlcntrlinputcapture: 10
• ADC Channels: 16
• Low Power: Yes
• Operating Voltage: 1.8 - 5.5
• Pin Count: 64
• SPI: 2
• Temp Range(°C): -40 - 125
• USART: 2

Related Link

• PIC18F67K22-I/PT Datasheet

Package Includes

1 x PIC18F67K22-I/PT Microcontroller (TQFP Package)
