PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC

PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC

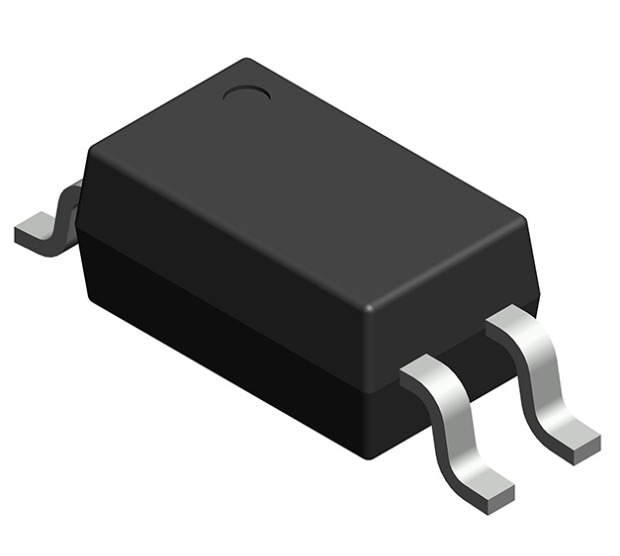

The PS2705A-1-F3-A is an optoisolator that contains a phototransistor and an LED, housed in a compact 4-pin SMD (Surface Mount Device) package. The optoisolator is characterized by its high isolation voltage (3.75kV), which means it can effectively isolate high-voltage circuits from low-voltage circuits, ensuring safety and signal integrity. The transistor output allows for a quick and reliable response to input signals, making it ideal for digital switching and control applications.

DNA solutions, Nashik has various types of Optoisolator IC's. Check out our complete collection of Optoisolator IC's.

• High Isolation Voltage: 3.75kV (AC peak), offering robust isolation to protect downstream circuitry from electrical surges and noise

• Optical Isolation: Provides electrical isolation between input and output, protecting sensitive systems from transient voltages

• Phototransistor Output: The output is a phototransistor, making it easy to interface with logic circuits and microcontrollers

• Low Input Current: The device is optimized for low current operation, requiring minimal power for operation

• Compact SMD Package: The 4-pin SMD package is ideal for surface-mount technology, allowing for compact designs and automated assembly processes

Specifications of PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC

• Optoisolator Type: Phototransistor output

• Input LED Forward Voltage: Typically 1.2V, max 1.4V

• Output Collector-Emitter Voltage: 80V max

• Isolation Voltage: 3750V (AC peak)

• Operating Temperature Range: -55°C to +100°C

• Package Type: 4-pin SMD

• Output Type: NPN transistor

• Storage Temperature Range: -55°C to +125°C

Applications of PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC

• Signal Isolation

• Microcontroller Interfacing

• Switching Power Supplies

• Communication Systems

• Data Acquisition Systems

Package Includes

      1 x PS2705A-1-F3-A Optoisolator Transistor 3.75KV Trans 4SMD IC
