Product Images are shown for illustrative purposes only and may differ from actual product.

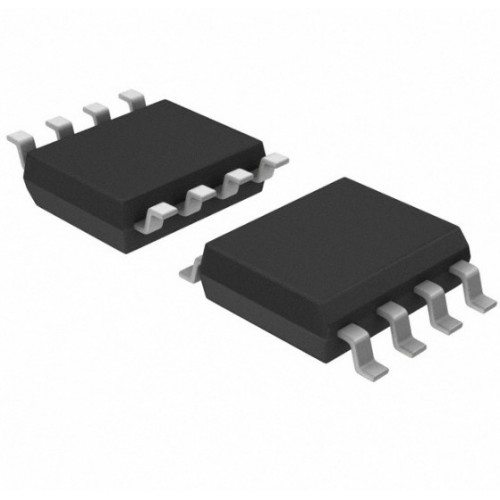

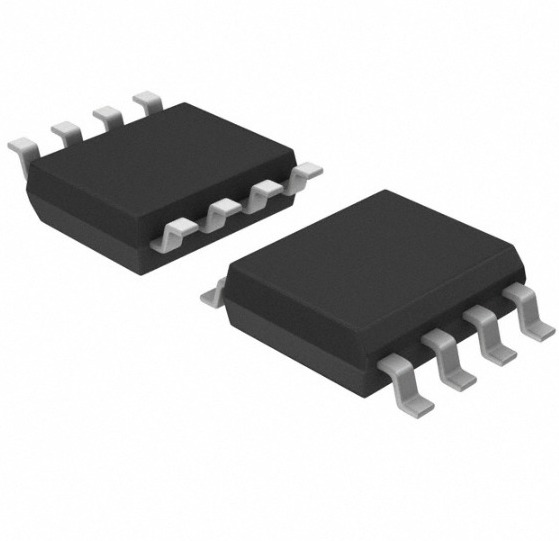

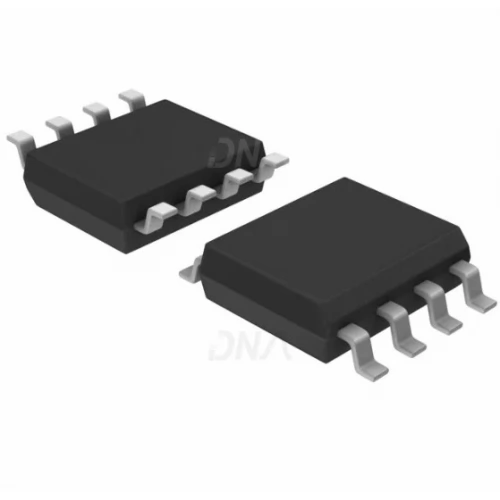

PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
- Stock: 3
- SKU: 8167 | DAH746
-
Rs. 208.98 (inc GST)
Rs.177.10 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
The PS9817A-2 optoisolator incorporates advanced photocoupler technology to isolate high-voltage circuits from low-voltage logic circuits. With its open-collector output configuration, it enables seamless interfacing with various digital systems. The device ensures secure, high-speed data communication in electrically noisy environments and offers superior common-mode transient immunity (CMR) to suppress external noise effectively.
DNA solutions, Nashik has various types of OptoIsolator IC's. Check out our complete collection of OptoIsolator IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
- High Data Rate: Supports data transmission speeds up to 10 Mbps
- High Common Mode Transient Immunity (CMR): Minimum of ±15 kV/μs, enhancing noise rejection capabilities
- Low Pulse Width Distortion: Maximum of 35 ns, ensuring signal integrity
- High Isolation Voltage: Withstands up to 2,500 Vrms, providing robust electrical isolation
- Open Collector Output: Allows for flexible interfacing with various logic levels
Specifications of PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
- Number of Channels: 2
- Input Type: DC
- Output Type: Open Collector
- Current Transfer Ratio (CTR): Not specified
- Propagation Delay (Max): 75 ns
- Supply Voltage: 4.5 V to 5.5 V
- Operating Temperature Range: -40°C to 85°C
- Package: 8-SSOP
Applications of PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
- Digital Signal Isolation
- Microprocessor System Interfaces
- High-Speed Data Transmission
- Noise Reduction in Industrial Environments
Package Includes
1 x PS9817A Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel SMD IC
