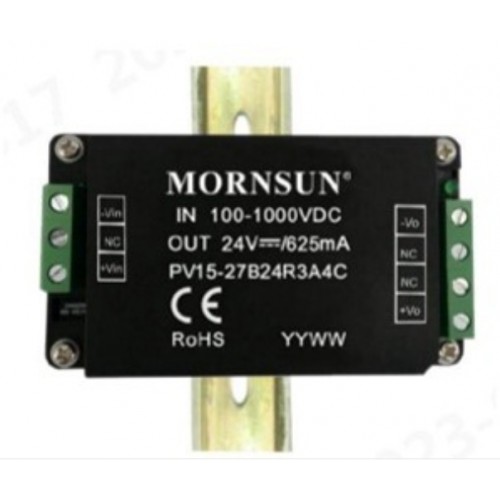

Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Name: Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module
Brand: Mornsun
SKU: DAH609
Price: 3056.2 INR
Availability: InStock
Rating: 4 (1 reviews)

Write a review | 1 reviews

Stock: 30
Availability: InStock priceValidUntil: 2026-12-11
Brand: Mornsun
SKU: 7825 | DAH609

Rs. 3,056.20 (inc GST)
Rs.2,590.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

PV15-27B24R3A4C isolated, regulated DC/DC converter module with 100–1000 VDC input, 24 VDC output and 15 W rated power.

The Mornsun PV15-27B24R3A4C is an isolated DC/DC converter module that changes a 100–1000 VDC input to a regulated 24 VDC output. It has a rated output power of 15 W for systems that need a low-voltage supply from a high-voltage DC line.

The wide input range supports a broad range of DC supply levels. Input-to-output isolation separates the two sides of the conversion. Built-in protection responds to reverse polarity, short circuits, over-current and over-voltage. The A4C version uses DIN-rail mounting and relies on free-air convection for cooling.

Use this 24 V DC converter for photovoltaic systems, power generation, energy storage or inverters. Its isolated output can support control and auxiliary power needs in high-voltage DC systems.

DNA stocks Mornsun DC to DC Converter Modules for electronics projects and industrial power designs. Explore this 24 V isolated converter and other options in the range. Check other DC to DC Converter Modules that we have in stock

Buying electronics in India? Contact DNA if you cannot find a part. We support imports and retail or bulk orders. You can also ask about Analog ICs, development boards, HMI displays, programmers, resistors and DC to DC Converter Modules. Contact Us

Features of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Isolated input-to-output conversion
Regulated DC output
Input reverse-polarity protection
Self-recovering short-circuit and over-current protection
Output over-voltage protection
DIN-rail mounting with free-air convection cooling

Specifications of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Input voltage range: 100–1000 VDC
Nominal output voltage: 24 VDC
Rated output current: 0.625 A
Rated output power: 15 W
Operating temperature: −40 to +70 °C
Input-to-output isolation: 4000 VAC minimum for a 1-minute electric-strength test
Efficiency: 83% typical at 200 VDC input
Dimensions: 96.1 × 54.0 × 36.6 mm

Applications of Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Photovoltaic systems
Power generation
Energy storage
Inverters

Package Includes

1 X Mornsun PV15-27B24R3A4C Isolated Regulated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
