SMBJ160CA-Q Transient Voltage Suppressor Diodes

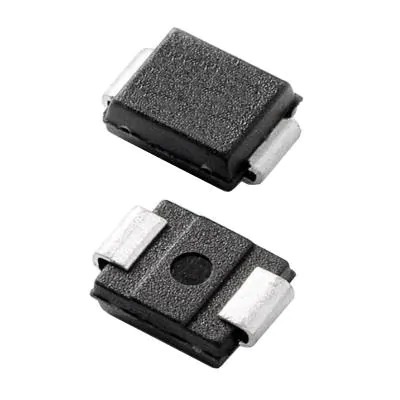

SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q

SMBJ160CA-Q TVS Diode protects against voltage transients with high surge capability and automotive grade certification.

The SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q is crucial for safeguarding sensitive electronics from voltage spikes. It is ideal for automotive and high-reliability applications, offering robust protection against lightning and other transient events. With a reverse stand-off voltage of 160V and a breakdown voltage range of 178V to 198V, this diode ensures that your equipment remains safe under extreme conditions.

Featuring a surface mount package, the SMBJ160CA-Q allows for efficient automated assembly. Its high surge capability of 1A and fast response time clamp voltage spikes quickly, minimizing potential damage. This diode also meets AEC-Q101 standards, making it a reliable choice for automotive applications. The low leakage current of 1µA at 160V further enhances its efficiency.

Incorporate the SMBJ160CA-Q into your circuit designs to ensure long-term stability. Its glass passivated junction design guarantees durability, making it perfect for applications that demand high reliability. Protect your electronic components with this advanced TVS diode.

Explore the reliability of Diodes & Transistors at DNA. The SMBJ160CA-Q from a trusted manufacturer provides essential protection for your electronics. Check other Diodes & Transistors that we have in stock.

Are you searching for specific electronic components? At DNA, we can help you find what you need. If we don’t have it in stock, we can import it for you. We support both retail and bulk orders. Explore our range of Microcontrollers, Transistors, Sensor Modules, Inductors, Capacitors, and LCDs. Contact Us.

Features of SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q

• Bidirectional TVS Diode
• Surface Mount Package
• High Surge Capability
• Automotive Grade
• Fast Response Time
• Low Leakage Current
• Glass Passivated Junction

Specification of SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q

• Reverse Stand-Off Voltage (V_RWM): 160V
• Breakdown Voltage (V_BR): Min 178V, Max 198V at 1mA
• Clamping Voltage (V_C): 259V at 1A
• Peak Pulse Current (I_PP): 1A
• Peak Pulse Power Dissipation (P_PP): 600W (10/1000µs waveform)
• Leakage Current (I_D): 1µA at 160V

Applications of SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q

• Automotive electronics
• Lightning protection circuits
• Power supply systems
• Communication systems
• Consumer electronics

Related Links for SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X SMBJ Transient Voltage Suppressor Diode SMBJ160CA-Q
