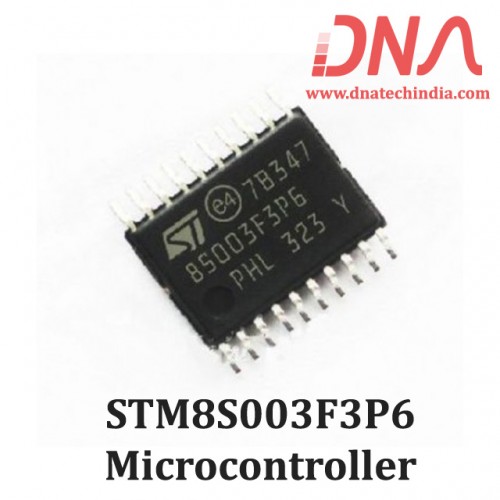

STM8S003F3P6TR Microcontroller

They are referred to as low density devices in the STM8S micro-controller family.

The STM8S003F3/K3 value line 8-bit micro-controllers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM.

The STM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system. The system cost is reduced thanks to a high system integration level with internal clock oscillators, watchdog, and brown-out reset.

Features of STM8S003F3P6TR

• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline Extended instruction set

• Program memory : 8 Kbytes Flash; data retention 20 years at 55 °C after 100 cycles

• RAM : 1 Kbytes

• Data memory : 128 bytes of true data EEPROM; endurance up to 100 k write/erase cycles

• Clock, reset and supply management

• Nested interrupt controller with 32 interrupts

• Up to 27 external interrupts on 6 vectors

• Advanced control timer : 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

• 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

• 8-bit basic timer with 8-bit pre-scaler

• Auto wake up timer

• Communications interfaces

• Analog to digital converter (ADC)
