Product Images are shown for illustrative purposes only and may differ from actual product.

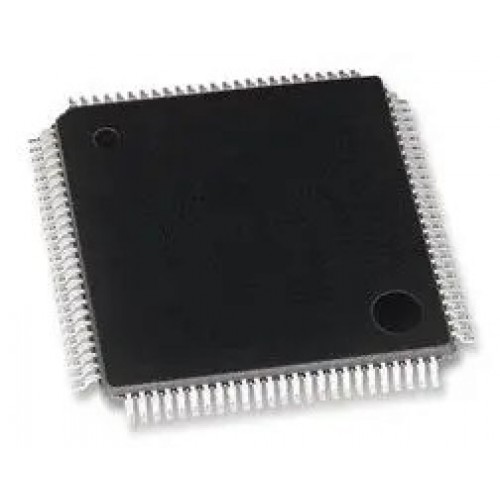

STM32F407VET6 ARM Cortex-M4 32bit Microcontroller IC
- Stock: 2
- SKU: 3889 | DAG637
-
Rs. 1,298.00 (inc GST)
Rs.1,100.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
STM32F407VET6 ARM Cortex-M4 32bit Microcontroller IC
STM32F407VET6 ARM Cortex-M4 32bit Microcontroller IC
The STM32F407VET6 IC is a high performance foundation line, ARM Cortex-M4 32bit microcontroller in 100 pin LQFP package. This microcontroller incorporates 32bit RISC core operating at a frequency of up to 168MHz. The Cortex-M4 core features floating point unit (FPU) single precision which supports all ARM single precision data processing instructions and data types. It also implements a full set of DSP instructions and memory protection unit (MPU) which enhances application security. The STM32F407VET6 incorporates high speed embedded memories, extensive range of enhanced I/O and peripherals connected to two APB buses, three AHB buses and 32bit multi AHB bus matrix. This MCU features 12bit ADCs, DACs, low power RTC, general purpose 16bit timers including PWM timers, general purpose 32bit timers, standard and advanced communication interfaces. A comprehensive set of power saving mode allows the design of low power applications.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of STM32F407VET6 ARM Cortex-M4 32bit Microcontroller IC
- 82 I/O ports
- 512Kbytes of flash memory
- Operating voltage range from 1.8V to 3.6V
- Three 12bit, 2.4MSPS A/D converters and two 12bit D/A converters
- 196Kbytes of SRAM including 64Kbyte of CCM (core coupled memory) data RAM
- 16 stream DMA controllers with FIFOs and burst support
- Ten general purpose and two advanced control timer
- 8bit to 14bit parallel camera interface up to 54Mbytes/s
- Ambient temperatures range from -40°C to 85°C
- Ethernet, three SPI, two I2S, three I2C, four USART, two UART, two CAN, SDIO, USB interfaces
Specification of ARM Cortex-M4 32bit Microcontroller IC
- Model: STM32F407VET6
- Core: ARM 32 Cortex M4 CPU
- Debug Mode: SWD
- Number of I/O: 140
- Memory: 192+4 Kbytes SRAM, 1Mbyte Flash
- D/A Converters: 2 x 12-bit
Package Includes
1 x STM32F407VET6 ARM Cortex-M4 32bit Microcontroller IC
