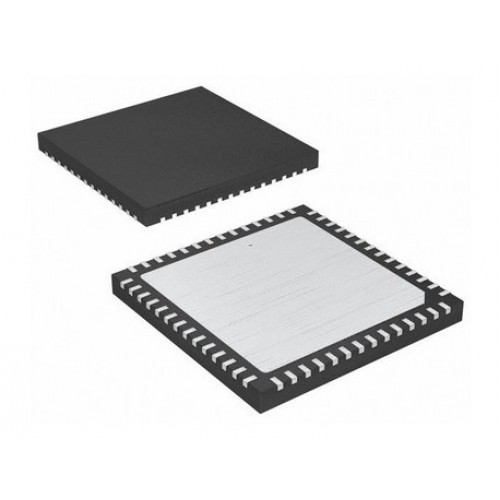

• SW5099 QFN-48 DC to DC IC

Product Images are shown for illustrative purposes only and may differ from actual product.

SW5099 QFN-48 DC to DC IC

  • Stock: 2
  • SKU: 7199 | DAG636
  • Rs. 354.00 (inc GST)
    Rs.300.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SW5099 DC to DC IC

SW5099 DC to DC IC

The MAX5099 offers a dual-output, high-switching-frequency DC-DC buck converter with an integrated high side switch. The MAX5099 integrates two low-side MOSFET drivers to allow each converter to drive an external synchronous-rectifier MOSFET. Converter 1 delivers up to 2A output current, and converter 2 can deliver up to 1A of output current. The MAX5099 integrates load-dump protection circuitry that is capable of handling load-dump transients up to 80V for automotive applications. The load-dump protection circuit utilizes an internal charge pump to drive the gate of an external n-channel MOSFET.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SW5099 DC to DC IC

  • Wide 4.5V to 5.5V or 5.2V to 19V Input Voltage Range with 80V Load-Dump Protection
  • Dual-Output DC-DC Converter with Integrated Power MOSFETs
  • Adjustable Outputs from 0.8V to 0.9VIN
  • Output Current Capability Up to 2A and 1A
  • Switching Frequency Programmable from 200kHz to 2.2MHz
  • Synchronization Input (SYNC)
  • Individual Converter Enable Input and Power Good Output
  • Low-IQ (7µA) Standby Current (ON/OFF)
  • Internal Digital Soft-Start and Soft-Stop

Applications of SW5099 DC to DC IC

  • Automotive AM/FM Radio Power Supply
  • Automotive Instrument Cluster Display

    Package Includes

    • 1 x SW5099 DC to DC IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
