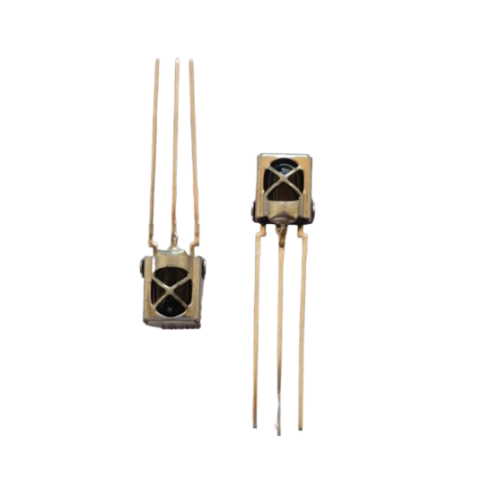

TSOP32238 – Remote Receiver Sensor

TSOP32238 – Remote Receiver Sensor

The TSOP32238 is an IR receiver module that detects and demodulates infrared signals emitted from a remote control. It operates at a carrier frequency of 38 kHz, making it compatible with most common IR remote control protocols. The device consists of a photo-diode, a preamplifier, and a demodulator circuit, all integrated into a compact package. It features high immunity to ambient light, minimizing interference from sunlight or fluorescent lamps.

DNA solutions, Nashik has various types of Sensor's. Check out our complete collection of Sensor's.

• Carrier Frequency: 38 kHz

• Low Power Consumption

• High Sensitivity to IR signals

• Suppresses Disturbance Signals such as sunlight and fluorescent lighting

• TTL and CMOS Compatible Output

• Wide Supply Voltage Range: 2.5V to 5.5V

• Compact and Easy-to-Mount Package

Specifications of TSOP32238 – Remote Receiver Sensor

• Carrier Frequency: 38 kHz

• Supply Voltage (Vcc): 2.5V to 5.5V

• Current Consumption: 0.35 mA (typical)

• Output Type: Active Low

• Viewing Angle: ±45°

• Transmission Range: Up to 35m (depending on emitter power)

• Operating Temperature: -25°C to +85°C

Applications of TSOP32238 – Remote Receiver Sensor

• Consumer Electronics

• Home Automation

• Security Systems

• Robotics

• Industrial Applications

Package Includes

      1 x TSOP32238 – Remote Receiver Sensor
