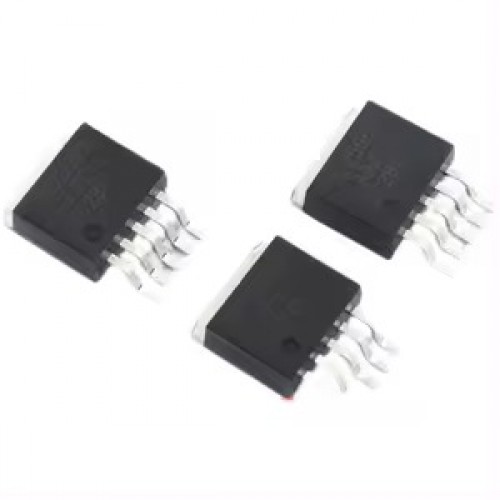

Product Images are shown for illustrative purposes only and may differ from actual product.

XL2596 12V PWM Stepdown DC/DC Buck Converter


Write a review | 1 reviews

  • Stock: 150

    Availability: InStock priceValidUntil: 2026-09-17

  • Brand: XL Semi
  • SKU: 7251 | DAF749

Availability: InStock priceValidUntil: 2026-09-17

  • Rs. 46.14 (inc GST)
    Rs.39.10 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL2596 12V PWM Stepdown DC/DC Buck Converter

XL2596 Buck Converter IC; 12V output; 3A load capacity with high efficiency.

The XL2596 12V PWM Stepdown DC/DC Buck Converter is a reliable solution for powering electronic devices. This converter operates with an input voltage range of 4.5V to 40V and delivers a fixed output of 12V, making it suitable for various applications. With a maximum load capacity of 3A, it ensures high efficiency and low ripple, essential for stable performance.

Designed for ease of use, the XL2596 12V PWM Stepdown DC/DC Buck Converter integrates internal frequency compensation and requires minimal external components. Its PWM control circuit allows for linear duty cycle adjustment from 0 to 100%. This feature, along with overcurrent protection, enhances its reliability in demanding situations.

Ideal for both hobbyists and professionals, the XL2596 12V PWM Stepdown DC/DC Buck Converter is an excellent choice for power supply needs in projects involving microcontrollers and other electronic components. Explore its potential in various applications like robotics, LED drivers, and more.

At DNA, we offer quality products from leading manufacturers in the Voltage Regulators category. Explore the XL2596 12V PWM Stepdown DC/DC Buck Converter and discover how it can enhance your projects. Check other Voltage Regulators that we have in stock.

If you’re looking for specific electronic components, reach out to us. We can help you find parts like SMPS, Microcontrollers, Capacitors, and more. If it's not available, we can also import it for you, supporting both retail and bulk needs. Contact Us.

Features of XL2596 12V PWM Stepdown DC/DC Buck Converter

  • Wide input voltage range from 4.5V to 40V
  • Adjustable output voltage from 1.23V to 37V
  • Fixed switching frequency of 150KHz
  • Constant output current capacity of 3A
  • High efficiency with minimal external components.

Specification of XL2596 12V PWM Stepdown DC/DC Buck Converter

  • Input Voltage Range: 4.5V to 40V
  • Output Voltage: 12V (Fixed)
  • Output Current: 3A (Maximum)
  • Efficiency: Up to 90%
  • Switching Frequency: 150 kHz (typical)
  • Output Voltage Ripple: Typically 50mV.

Applications of XL2596 12V PWM Stepdown DC/DC Buck Converter

  • Power supply for microcontrollers
  • LED drivers
  • Robotics
  • Battery management systems
  • DC motor control.

Related Links for XL2596 12V PWM Stepdown DC/DC Buck Converter

Package Includes

  • 1 X XL2596 12V PWM Stepdown DC/DC Buck Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
