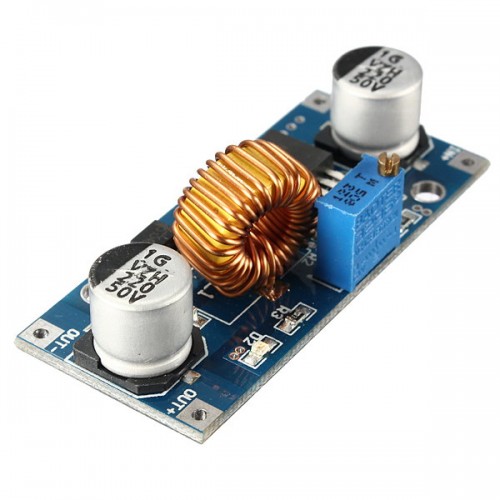

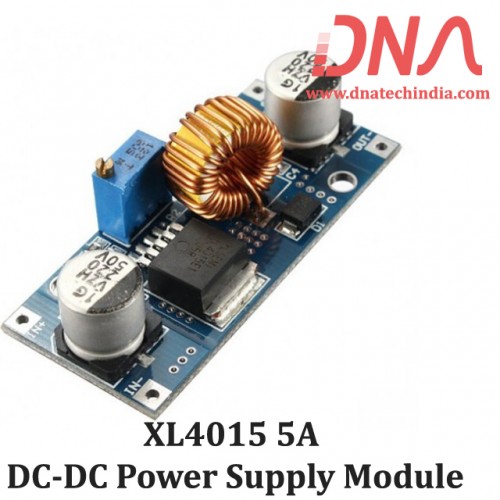

XL4015 5A DC-DC Power Supply Module

This is a DC to DC Adjustable step down Power Supply Module based on XL4015 with 5 Ampere current rating.

This module works on 180 KHz frequency and is a PWM frequency Buck DC to DC Converter Module. XL4015 Power Supply Module is driving current of 5 Ampere with excellent line and load regulation, low ripple and high efficiency.

XL4015 is a DC to DC buck module i.e the output voltage is lower than the input voltage and has lots of applications from LCD tV & Monitors to Battery chargers and regulated power supply module for hobbyist.

We also have XL4015 IC in stock.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.

Specifications of XL4015 Power Supply Module

• Input voltage range 8-38 Volt DC(Note:input voltage not exceeding 38V)

• Output voltage range :1.25-36 Volt DC adjustable

• Output current : 0-5A

• Output power : 75W

• High efficiency up to 96%

• Built in thermal shutdown function

• Built in current limit function

• Built in output short protection function

• Input reverse polarity protection : None (if required,you can attach high current diode in series with the input).

• L x W x H = 5.4*2.3*1.5 CM
