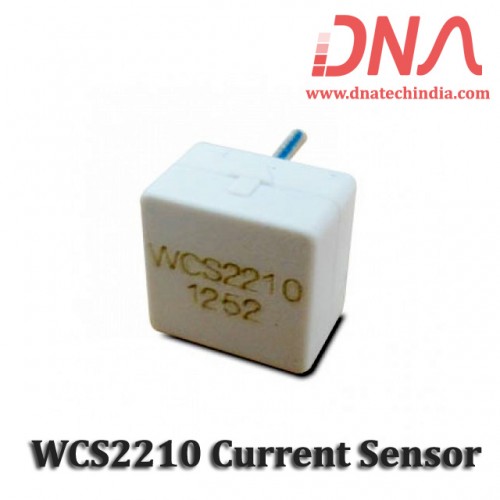

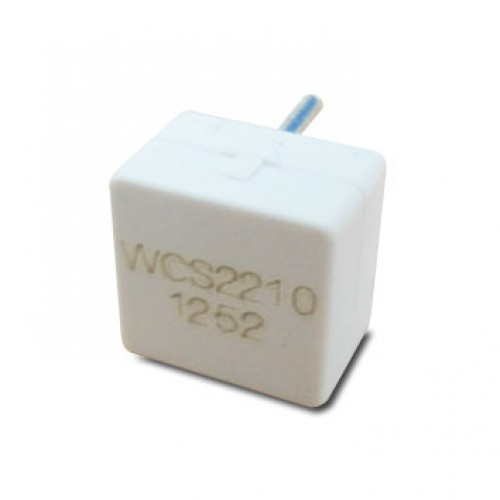

WCS2210 Linear AC Current Sensor

WCS2210 Linear AC Current Sensor

WCS2210 Current Sensor for AC and DC sensing with 0-12A range, 130 mV/A sensitivity, and low internal resistance.

The WCS2210 Linear AC Current Sensor offers precise AC and DC current sensing, making it ideal for industrial and commercial applications. With a sensing range of 0 to 12 Amperes and a sensitivity of 130 mV/A, this sensor supports motor control and load management. The low internal resistance of 0.4 mΩ minimizes power loss and enhances reliability.

Designed with a built-in AC to DC rectifier and a Hall effect sensor, the WCS2210 ensures accurate readings with minimal temperature drift. Its unique design allows for easy integration, providing electrical isolation up to 1,000V without additional isolation components. This feature makes it a cost-effective solution for intelligent power management systems.

Applications of the WCS2210 Linear AC Current Sensor include over-current fault detection and various monitoring systems. Explore how this sensor can enhance your projects with its robust performance and reliability.

At DNA, we offer the brand of Current and Voltage Sensors, providing reliable solutions for your sensing needs. Explore our range of Current and Voltage Sensors to find the right fit for your projects. Check other Current and Voltage Sensor that we have in stock.

If you're searching for specific electronic components, DNA is here to help. We can assist with importing items not currently in stock and support both retail and bulk orders. Check out related products like Connectors, DC to DC Converter IC, IGBT, Inductor, Transistor, and Development boards. Contact Us

Features of WCS2210 Linear AC Current Sensor

• Built-in AC to DC rectifier circuit
• 0.4 mΩ internal conductor resistance
• Output voltage proportional to AC and DC current
• Min. sensing current 0~12A at 5V
• High Sensitivity 130 mV/A
• Wide operating voltage range 3.0~12V
• Low operating current 3.3 mA
• Nearly zero magnetic hysteresis
• Ratiometric output from supply voltage
• 23K Hz bandwidth

Specification of WCS2210 Linear AC Current Sensor

• Sensing range: 0-12A
• Sensitivity: 130 mV/A
• Internal resistance: 0.4 mΩ
• Operating voltage: 3.0-12V
• Operating current: 3.3 mA
• Bandwidth: 23K Hz
• Isolation voltage: 1,000V

Applications of WCS2210 Linear AC Current Sensor

• Motor control
• Load detection
• Over-current fault detection
• Intelligent power management
• Commercial and industrial systems

Related Links for WCS2210 Linear AC Current Sensor

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X WCS2210 Linear AC Current Sensor
