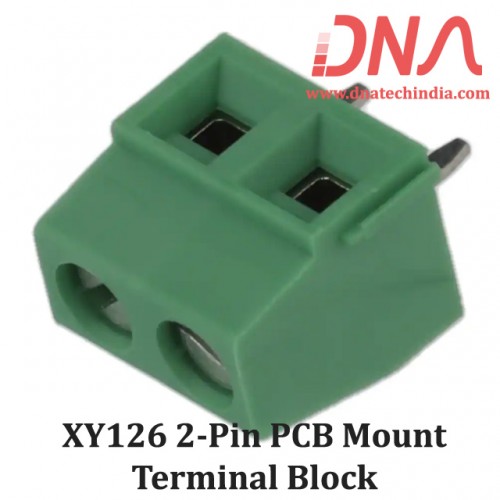

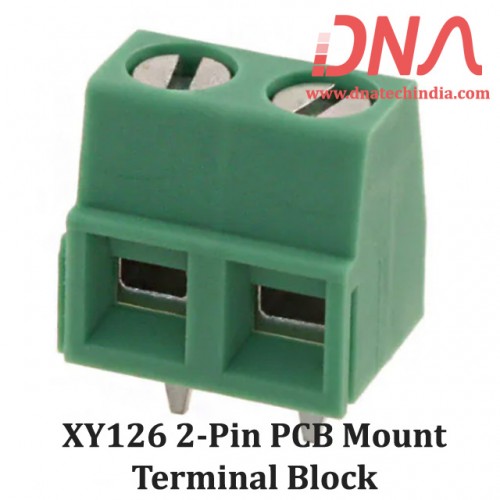

XY126 2 Pin PCB Mount Screwable Terminal Block
- Stock: 98
- Brand: Xinya
- SKU: 1302 | DAB225
-
Rs. 4.25 (inc GST)
Rs.3.60 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
2 Pin XY126 5.08 mm pitch PCB Mount Terminal Block
XY126 PCB Mount 2 Pin 5.08mm pitch Screwable Terminal Block Connector
This is 2 PIN PCB Mount screwable Terminal Block Connector. The XY126 Pluggable Screw Terminal Block is a compact and versatile terminal block with 5.08mm pitch and is very useful if you want to screw connecting wires to PCB.
In this XY126 2 Pin PCB Mount Screwable terminal block you can screw wires from 26-14 AWG. These terminal blocks has voltage rating of 300 volts and current rating upto 10 Ampere.
One really cool feature of the 2 pin & 3 Pin XY126 Terminal Connector is you can slide lock them together to form any size you want eg 4, 5, 10 even 20 without any problem. So basically you do not need to keep variety of these screwable terminals keeping just 2 pin version and 3 pin version will be sufficient for all your requirements.
DNA Solutions has various types of screwable connectors. Check our complete collections of Screwable Terminal Block (XY126/XY128/XY129/HB9500) . We also have various types of XY-2500 F-B series combicon connectors or two piece terminal block.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Dimensions of XY126 Screwable Terminal Block
- Poles : 2P
- Pitch : 5.08mm (0.197")
Electrical Data of XY126 Screwable Terminal Block
- Standard : UL
- Voltage Rating : 300 Volts
- Current Rating : 10 Ampere
- Wire Range : 26-14 AWG
- Withstand Voltage : AC2000 V/Min
